Explosion-Proof Two-Wire Online Conductivity Analyzer
Product Notes:
1. All Online Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
I-download
I-download

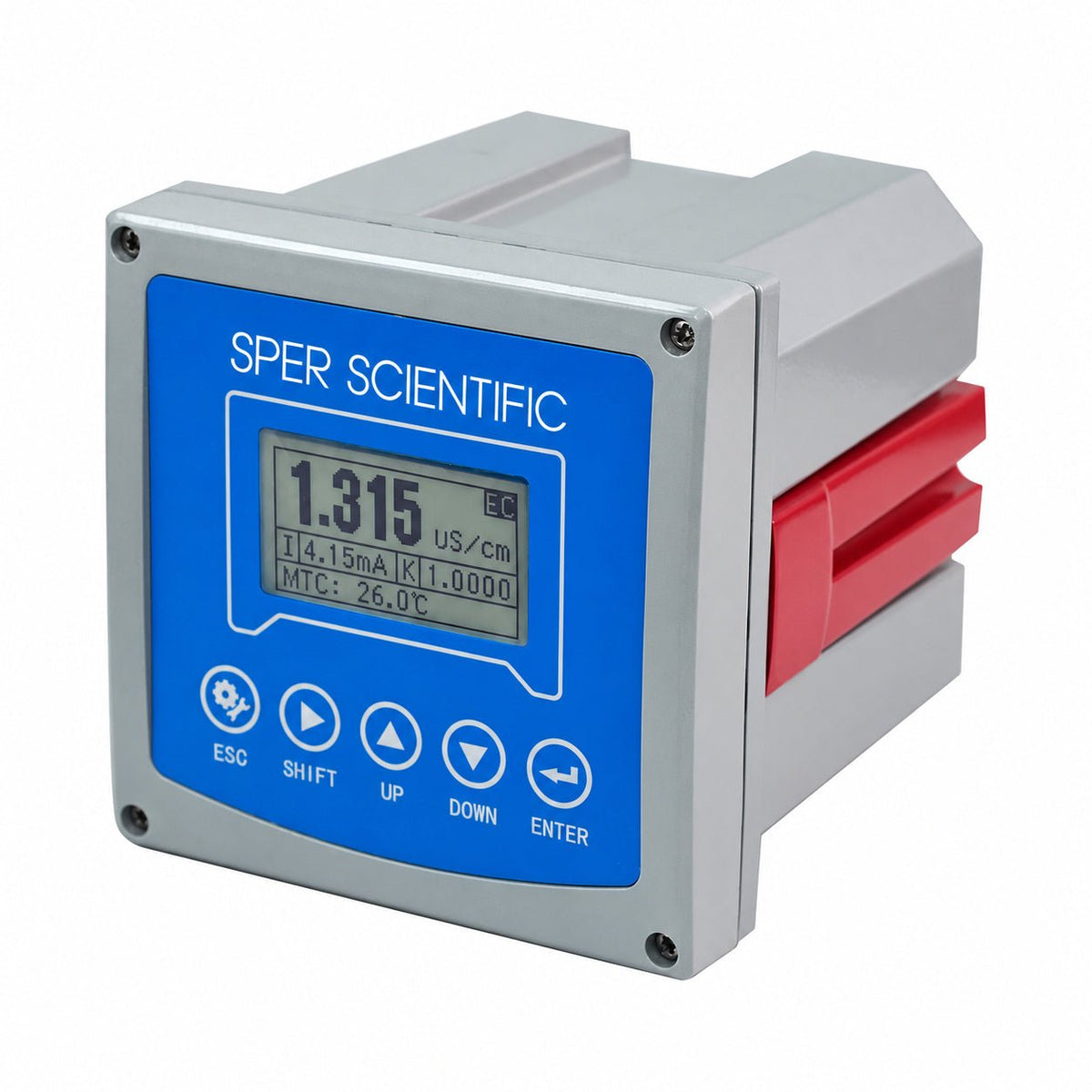

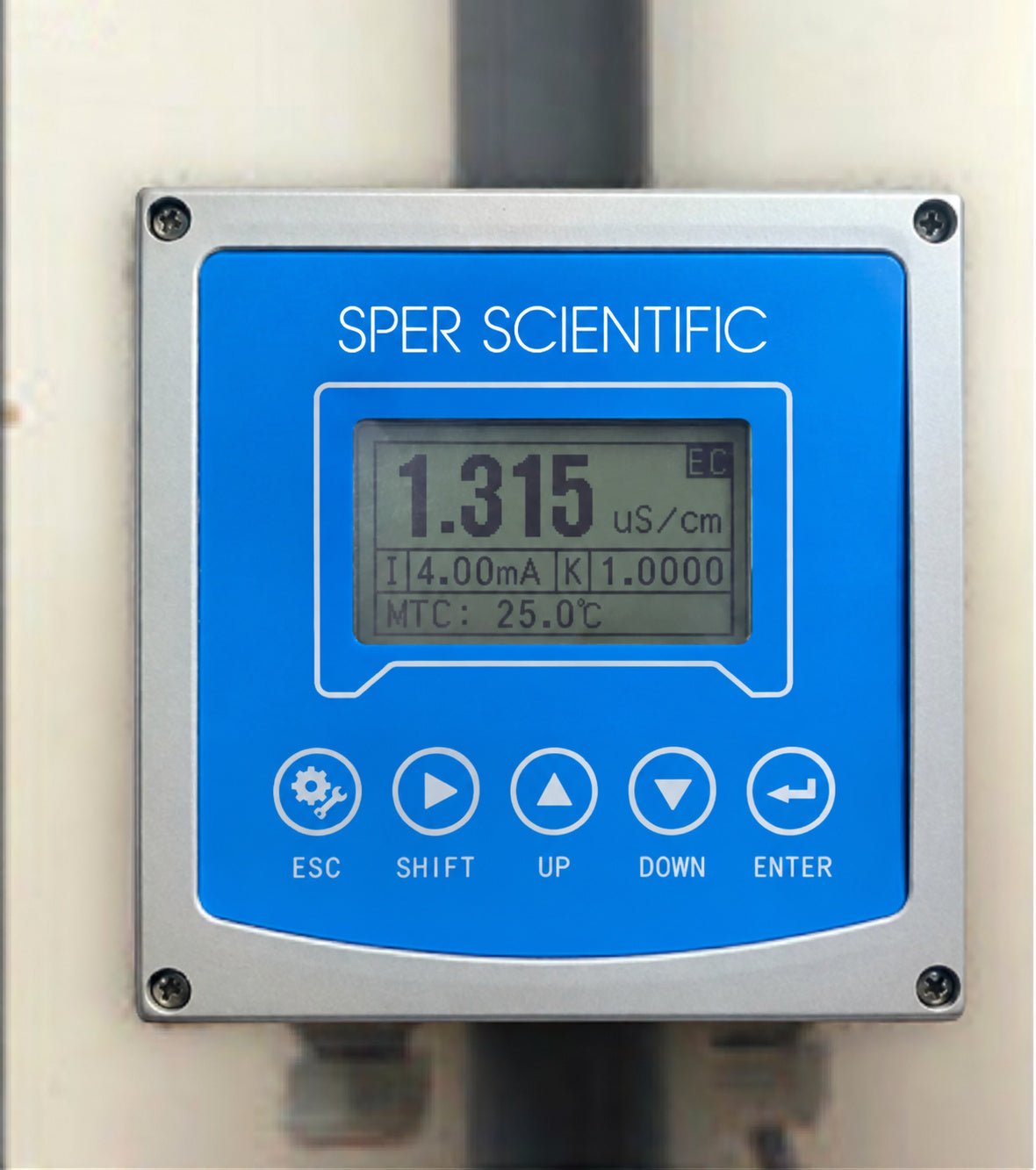

The Sper Scientific 870003E Two-Wire Explosion-Proof Online Conductivity Analyzer supports continuous conductivity, salinity, TDS, resistivity and temperature monitoring with a compatible analog sensor.
The Sper Scientific 870003E 2-Wire Explosion-Proof Online Electrical Conductivity Analyzer provides continuous monitoring of conductivity, salinity, total dissolved solids (TDS), resistivity and temperature in water and process solutions.
Used with a compatible analog conductivity sensor, it is suitable for wastewater treatment, power generation, chemical processing, pharmaceutical manufacturing, food processing and drinking water applications. A two-wire 4–20 mA output connects the analyzer to process monitoring equipment, while low power consumption supports continuous operation in industrial installations.
Construction
The analyzer features a die-cast aluminum housing with an IP65 rating for protection against dust and water. Its construction supports use in demanding industrial environments.
Features
- Continuous monitoring of conductivity, salinity, TDS, resistivity and temperature
- Compatible with analog conductivity sensors
- Two-wire 4–20 mA output
- Low power consumption
- Die-cast aluminum housing with IP65 protection
- Explosion-proof design with manufacturer-listed Ex ia IIC T6 Ga marking
Specifications
| Part number | 870003E |
|---|---|
| Conductivity, K = 0.01 | 0.01–20 µS/cm |
| Conductivity, K = 0.1 | 0.1–200 µS/cm |
| Conductivity, K = 1.0 | 1–2,000 µS/cm |
| Conductivity, K = 10.0 | 10–20,000 µS/cm |
| Salinity | 0.00–80.00 ppt |
| TDS | 0–130,000 mg/L (ppm) |
| Resistivity | 0–20 MΩ·cm |
| Temperature inputs / ranges | Pt100, Pt1000 or NTC10k: −40 to +200°C; NTC2.252k: −30 to +150°C |
| Accuracy | ±0.5% F.S.; temperature ±0.3°C |
| Output | One two-wire 4–20 mA output |
| Output error | ≤±0.3% F.S. or ±0.05 mA, whichever is greater |
| Power | 18–30 VDC; 0.66 W |
| Housing | Die-cast aluminum; IP65 |
| Dimensions / weight | 144 × 144 × 147 mm; 1.35 kg |
| Operating environment | −20 to +60°C; ≤95% RH, noncondensing |
| Storage temperature | −40 to +70°C |
