Sanitary Tri-Clamp Conductivity Sensor
Product Notes:
1. All Inline Bio-Process Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Descargar
Descargar
The Tri-Clamp Conductivity Sensor Series measures water conductivity across five configurations, with cell constants and probe lengths suited to different measurement ranges and installation requirements.
Applications include purified water systems, reverse osmosis, pharmaceutical processing, food production and industrial water monitoring.
Select K = 0.01 cm⁻¹ for measurements from 0 to 20 µS/cm, K = 0.1 cm⁻¹ for 0 to 200 µS/cm or K = 1.0 cm⁻¹ for 0 to 2,000 µS/cm. Short and long versions are available for the K = 0.01 and K = 0.1 configurations, while the K = 1.0 configuration is offered in a short version.
Each sensor features a stainless steel housing, a 50.5 mm Tri-Clamp flange and IP68 protection. All configurations have a specified temperature range of 0 to 120°C and pressure range of 0 to 4 bar. An NTC10K temperature sensor and 5 m signal cable are standard, with alternative temperature sensors and custom cable lengths available.
- Three cell constants covering conductivity ranges up to 2,000 µS/cm
- Five configurations with different probe lengths
- Measurement accuracy of ±2% of full scale
- Stainless steel housing with 50.5 mm Tri-Clamp flange
- NTC10K temperature sensor as standard
- Optional PT1000, PT100 or NTC2.252K temperature sensors
- 5 m standard signal cable with customizable lengths
- IP68 protection rating
Probe Options
- K = 0.01 cm⁻¹: Short or long probe configuration
- K = 0.1 cm⁻¹: Short or long probe configuration
- K = 1.0 cm⁻¹: Short probe configuration
- PT1000, PT100 or NTC2.252K temperature sensor in place of the standard NTC10K
- Custom signal cable lengths
Specifications
| Configuration | Cell Constant | Conductivity Range | Overall Length | Probe Length |
|---|---|---|---|---|

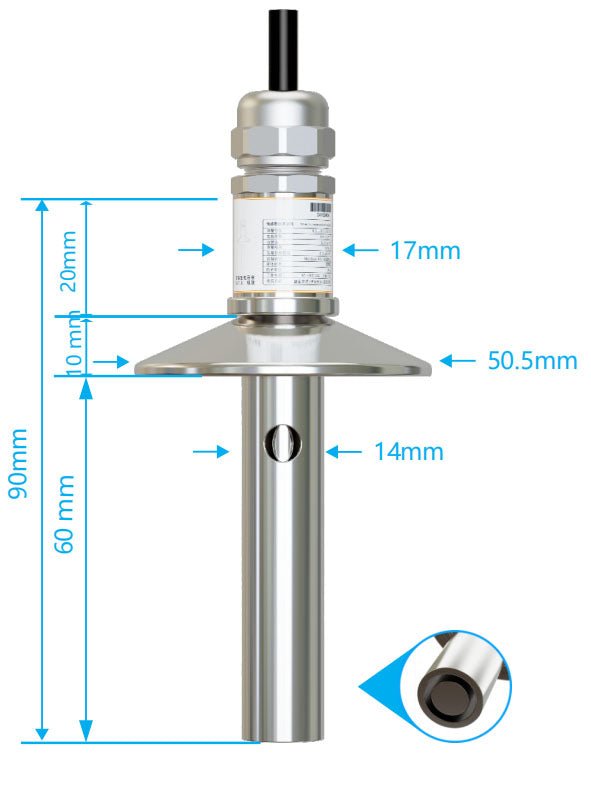

| K = 0.01 Short | 0.01 cm⁻¹ | 0–20 µS/cm | 90 mm | 60 mm |

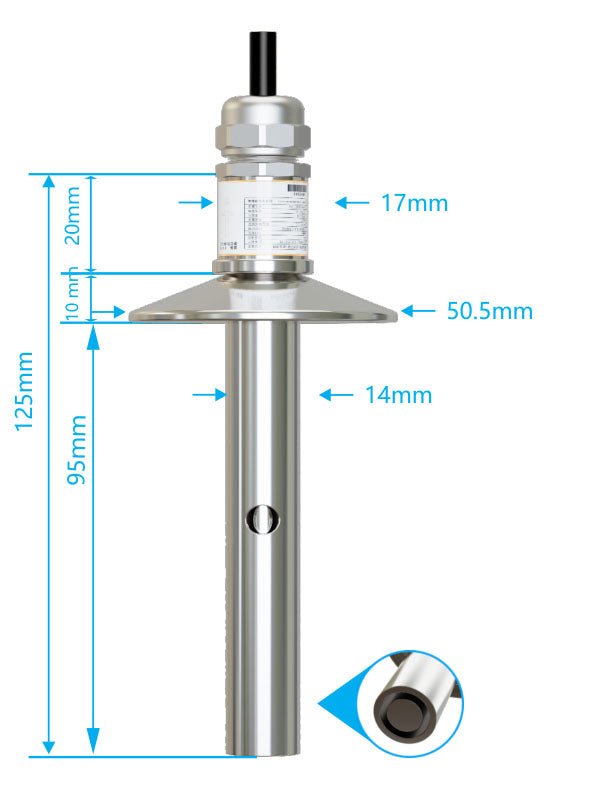

| K = 0.01 Long | 0.01 cm⁻¹ | 0–20 µS/cm | 125 mm | 95 mm |

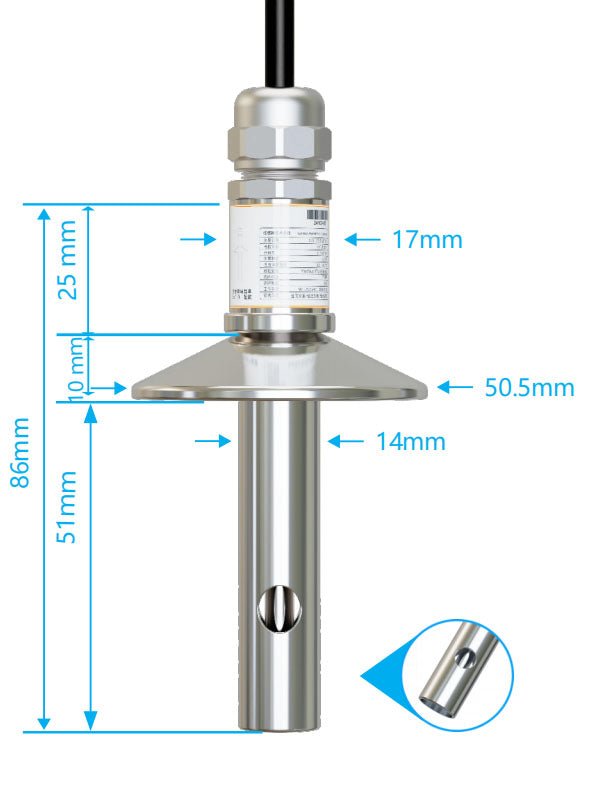

| K = 0.1 Short | 0.1 cm⁻¹ | 0–200 µS/cm | 86 mm | 51 mm |

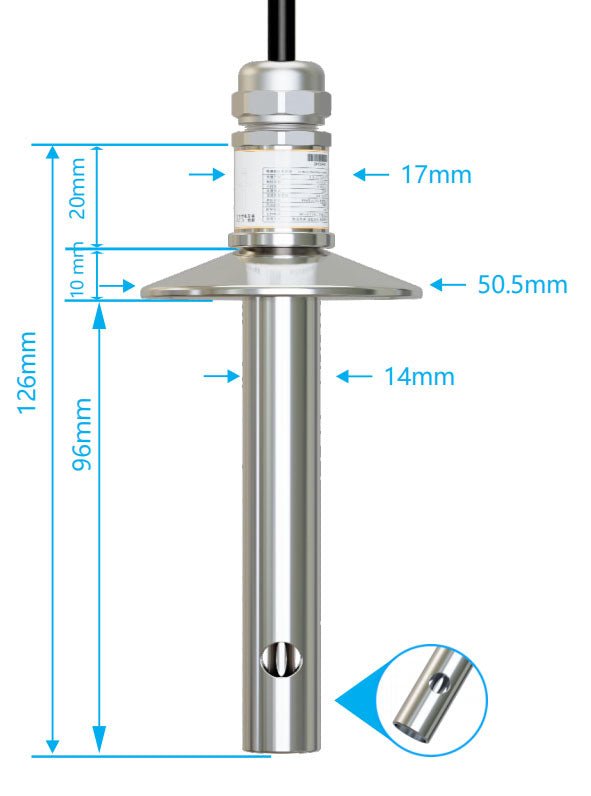

| K = 0.1 Long | 0.1 cm⁻¹ | 0–200 µS/cm | 126 mm | 96 mm |

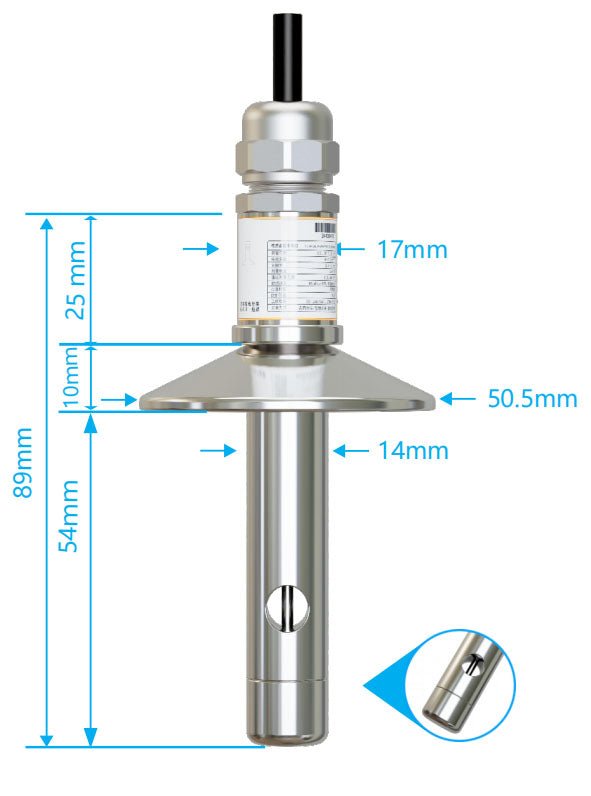

| K = 1.0 Short | 1.0 cm⁻¹ | 0–2,000 µS/cm | 89 mm | 54 mm |
Shared Specifications
| Resolution | 1 µS/cm |
|---|---|
| Measurement Accuracy | ±2% FS (full scale) |
| Temperature Range | 0–120°C (32–248°F) |
| Pressure Range | 0–4 bar (approximately 0–58 psi) |
| Standard Temperature Sensor | NTC10K |
| Optional Temperature Sensors | PT1000, PT100 or NTC2.252K |
| Housing Material | Stainless steel |
| Signal Cable | 5 m (16.4 ft.) standard; custom lengths available |
| Installation Type | Immersion |
| Clamp/Flange Diameter | 50.5 mm (1.99 in.) |
| Upper Body Diameter | 17 mm (0.67 in.) |
| Probe Diameter | 14 mm (0.55 in.) |
| Flange Section Length | 10 mm |
| Upper Section Length | 20 mm for K = 0.01 Short, K = 0.01 Long and K = 0.1 Long; 25 mm for K = 0.1 Short and K = 1.0 Short |
| Protection Rating | IP68 |
| Warranty | 1 year |
FAQs
Which cell constant should I choose?
Select a configuration that covers your expected conductivity range: K = 0.01 cm⁻¹ for 0–20 µS/cm, K = 0.1 cm⁻¹ for 0–200 µS/cm or K = 1.0 cm⁻¹ for 0–2,000 µS/cm.
What is the difference between the short and long versions?
The versions have different overall and probe lengths to accommodate installation requirements. The measurement range remains the same for versions with the same cell constant.
Which temperature sensor is included?
NTC10K is standard. PT1000, PT100 and NTC2.252K are available as options. Confirm compatibility with the connected instrument before ordering.
Can the cable length be customized?
Yes. The standard signal cable is 5 m long, with custom lengths available.
