Sper Scientific
SPSGT-65R
6 Channel Multi-Parameter Data Logger | Temperature RTD Pressure 4-20mA 0-5V Voltage with RS485
The SPSGT65R Data Logger is a versatile multi-channel monitoring solution designed for real-time data acquisition and process control across industrial environments.
This item ships direct from the manufacturer. Please allow 10-15 business days for order processing and shipment.

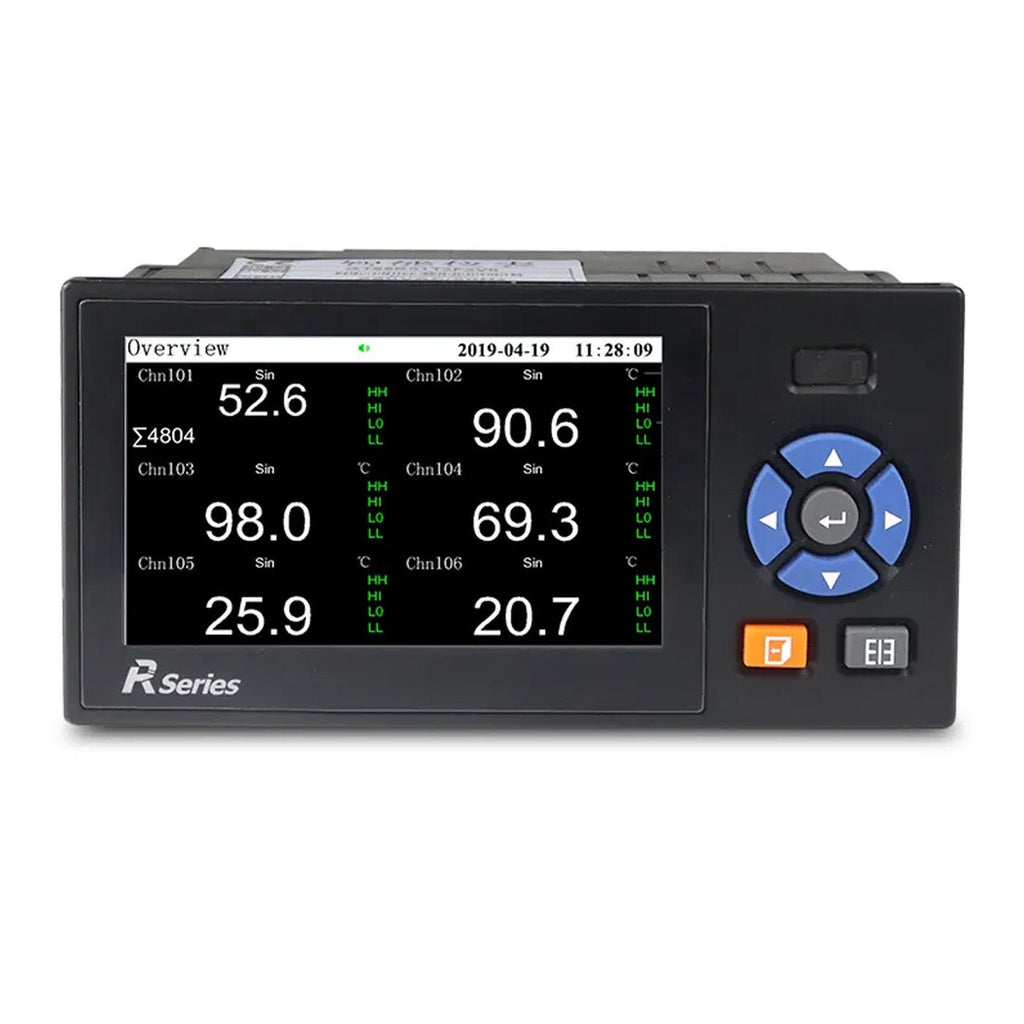

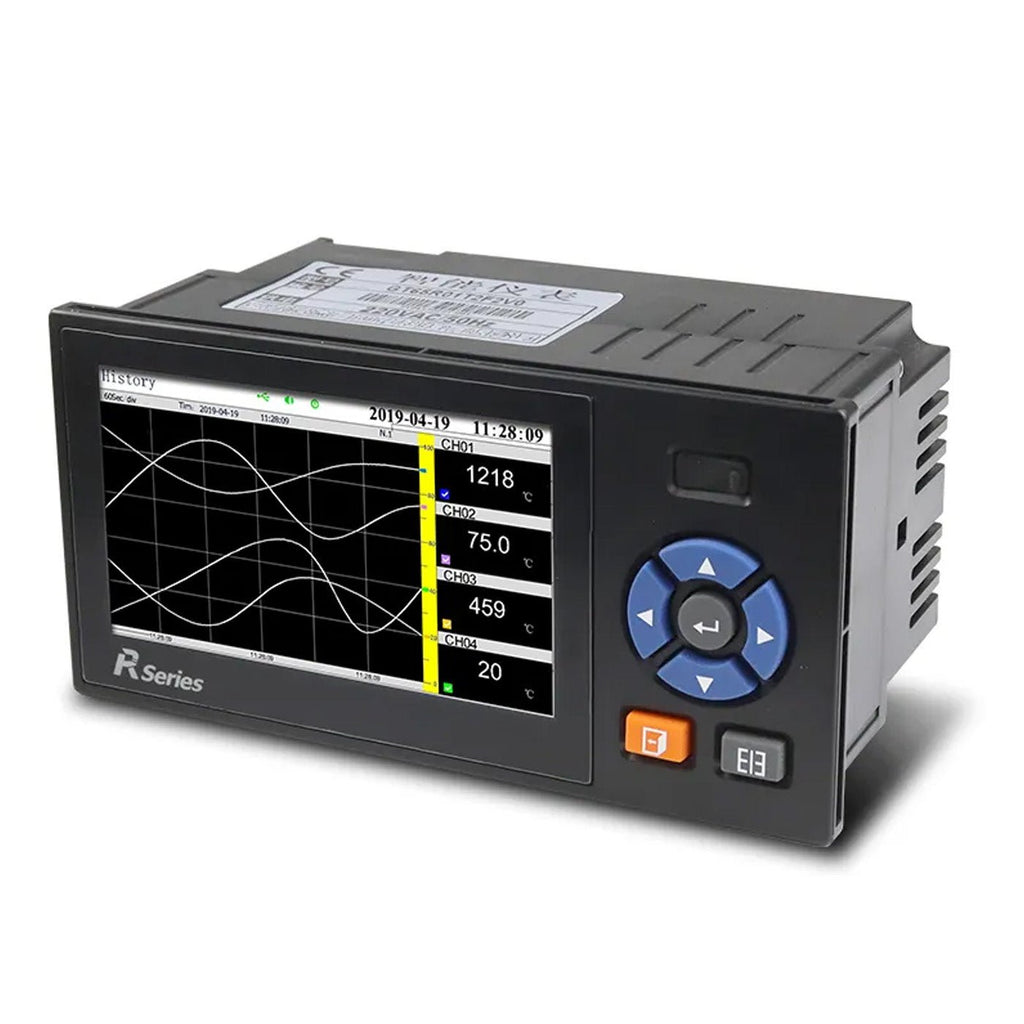

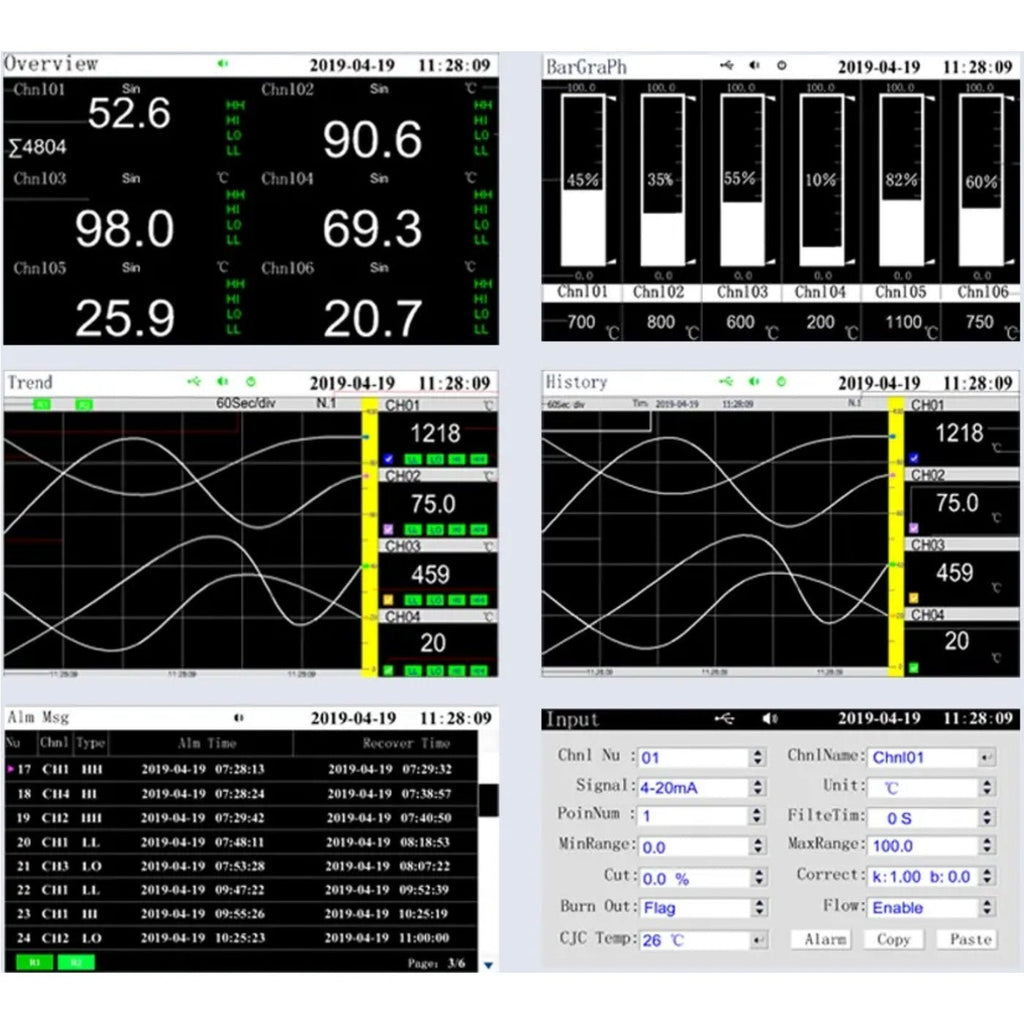

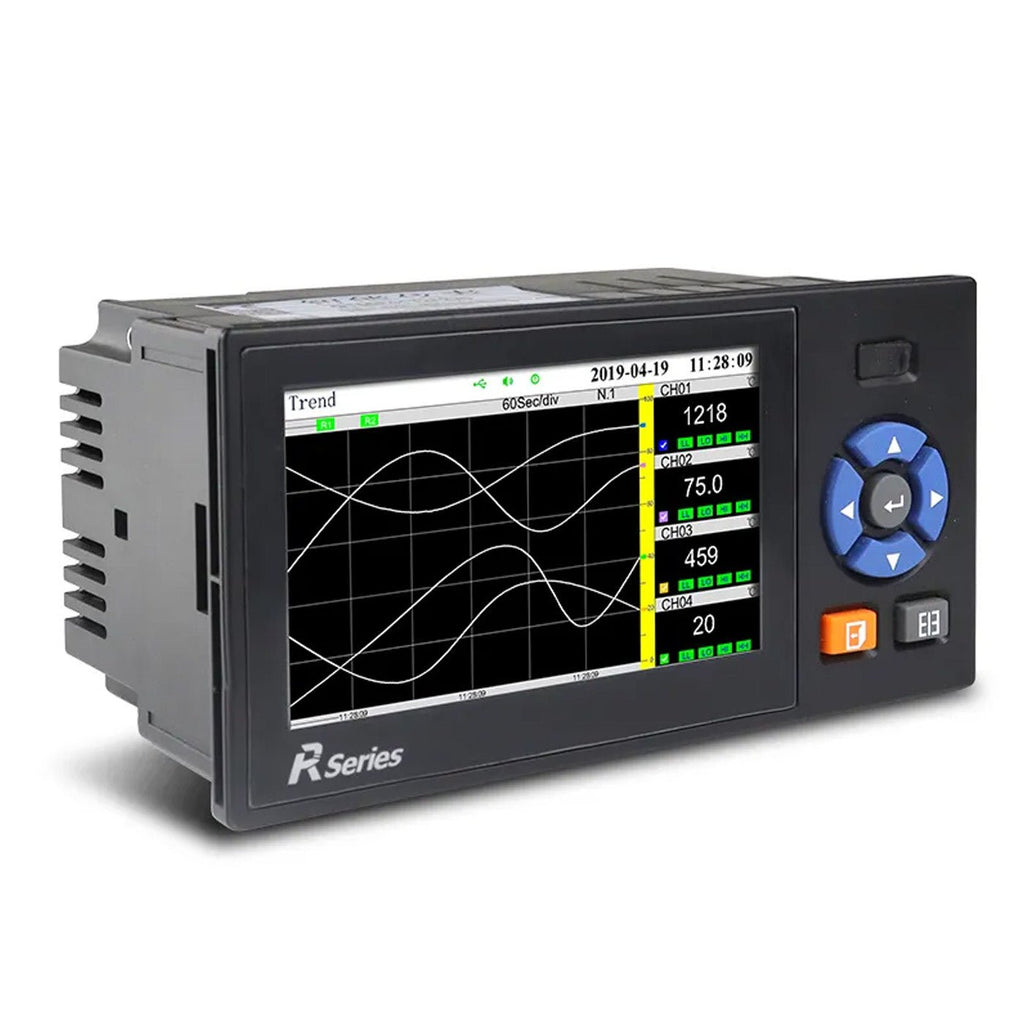

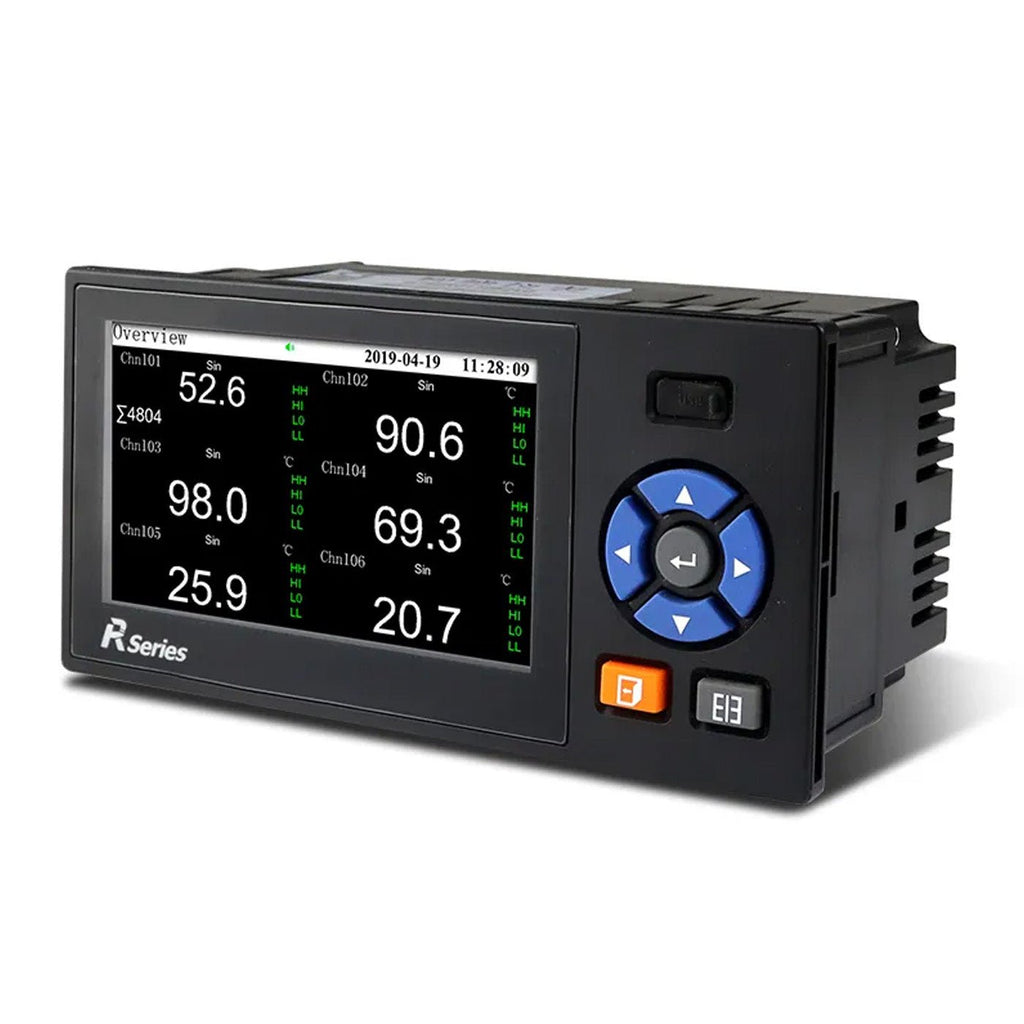

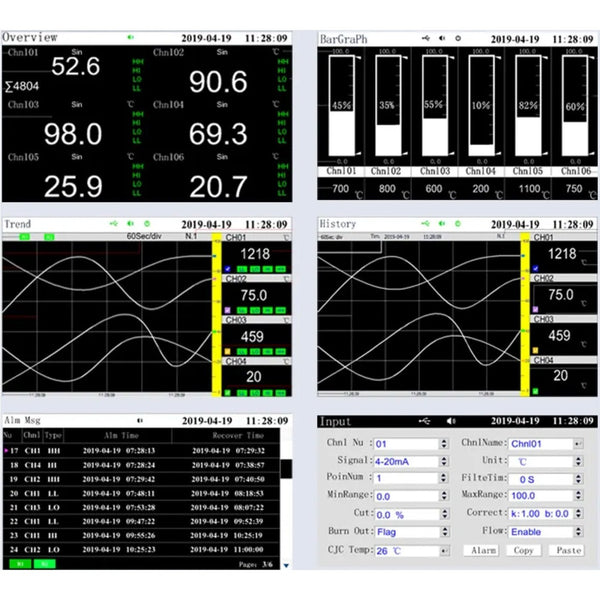

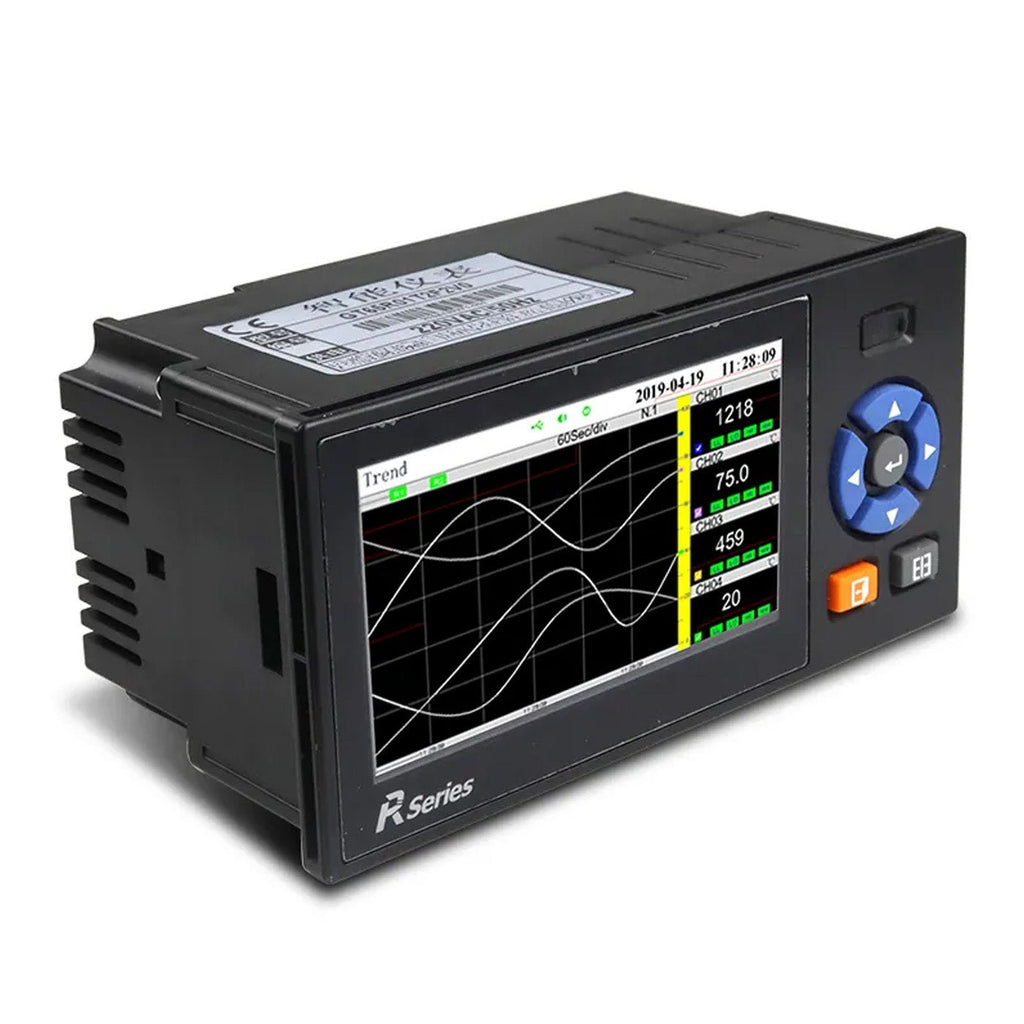

Featuring a 4.3-inch true-color TFT display, the unit provides clear visualization of live readings, bar graphs and trend curves, allowing users to quickly interpret system performance and detect anomalies.
Supporting up to six analog input channels, the SPSGT65R offers flexible integration with a wide range of sensors. Built-in data storage enables automatic interval recording, ensuring reliable long-term monitoring without external devices. With configurable outputs including relay alarms and 4–20 mA transmission, the unit seamlessly connects to control systems, making it well-suited for continuous process monitoring in demanding applications.
-
4.3" True-Color TFT Display
Clear visualization of real-time data, trend curves and bar graphs for intuitive monitoring -
Flexible Multi-Channel Input
Supports 1 to 6 analog input channels for connection to various industrial sensors -
Built-In Data Logging
High-capacity internal memory with automatic interval recording for long-term data tracking -
Dual 4–20 mA Output
Enables signal retransmission to PLC, SCADA or other control systems -
Relay Alarm Outputs
Two configurable relay outputs for alarms or process control actions -
Integrated Power Distribution
Provides power to connected sensors through a dedicated output channel -
Optional RS232C and RS485 Communication
Allows system integration and remote data access -
Multiple Power Supply Options
Operates on 220V AC, 12V DC or 24V DC for flexible installation
Applications
-
Pharmaceutical Manufacturing
Monitor temperature, pressure and process variables in controlled environments -
Chemical Processing
Track critical parameters to ensure safety and process consistency -
Food & Beverage Production
Maintain quality control through continuous environmental and process monitoring -
Industrial Automation Systems
Integrate with PLC and SCADA systems for centralized monitoring and control -
Environmental & Process Monitoring
Suitable for general-purpose data logging across multiple sensor types
| Model | SPSGT65R Data Logger |
| Display | 4.3" true-color TFT LCD |
| Input Channels | Up to 6 universal analog inputs |
| Input Signal Types | Voltage: 0–5 V, 1–5 V, 0–20 mV, 0–100 mV Current: 0–10 mA, 4–20 mA, 0–20 mA Resistance: Res RTD: Pt100, Cu50, G53, Cu100, BA1, BA2 Thermocouple: S, B, K, T, R, E, N, J Radiation Pyrometer: F1, F2 Tungsten-Rhenium: WRe3-25, WRe5-26 |
| Sensor Power Output | 1 channel, isolated 24 VDC distribution, <60 mA |
| Transmit Output | 2 × 4–20 mA outputs |
| Alarm Output | 2 relay outputs with high/low limit configuration |
| Processor | ARM Cortex-M3, 32-bit RISC core |
| Communication | RS232C, RS485 (Modbus RTU) |
| Printing Interface | RS232C micro printer connection (1200 baud) |
| Data Storage | 64 MB, 128 MB, 192 MB or 248 MB selectable flash memory |
| Recording Interval | 1 to 240 seconds (configurable) |
| Power Supply | 220 VAC, 12 VDC or 24 VDC |
| Operating Environment | 0 to 50°C, 0–85% RH (non-condensing), altitude <2000 m |
