Sekonic
C-800-U

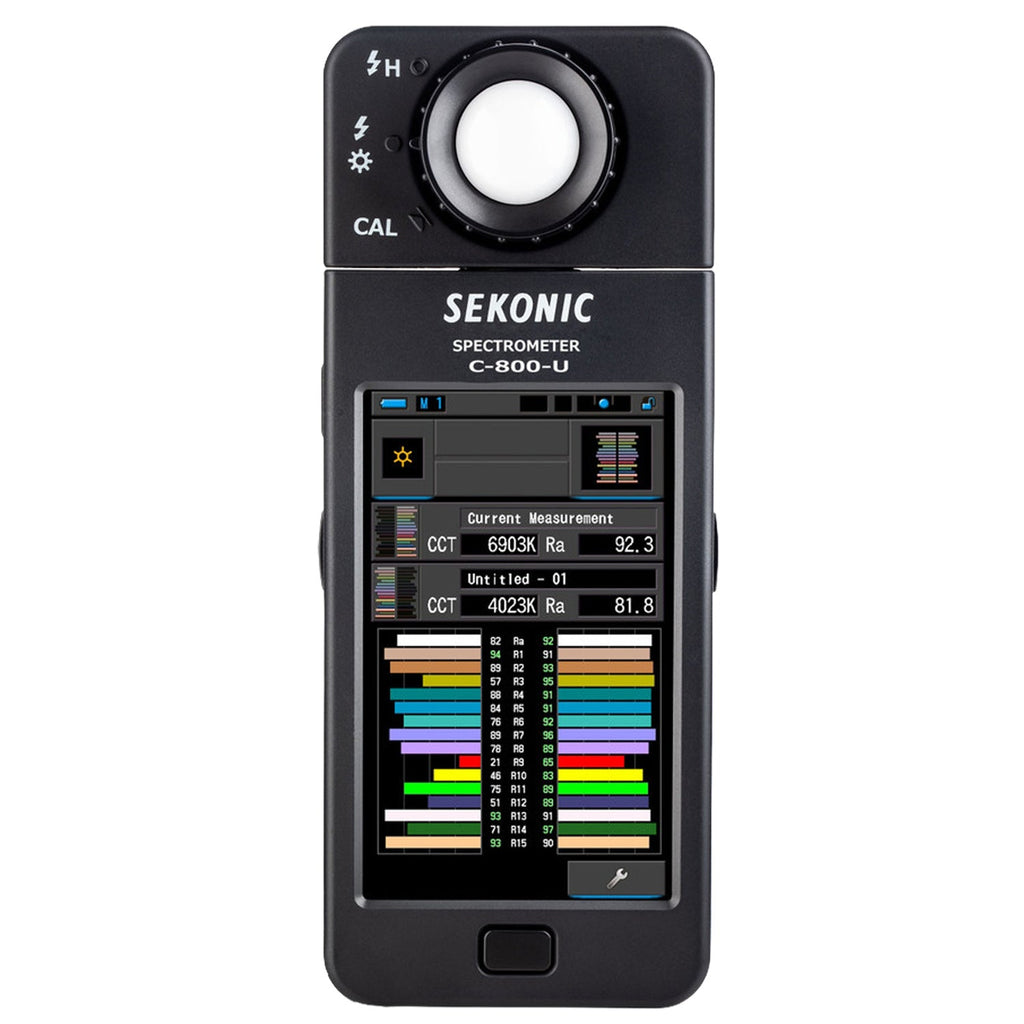

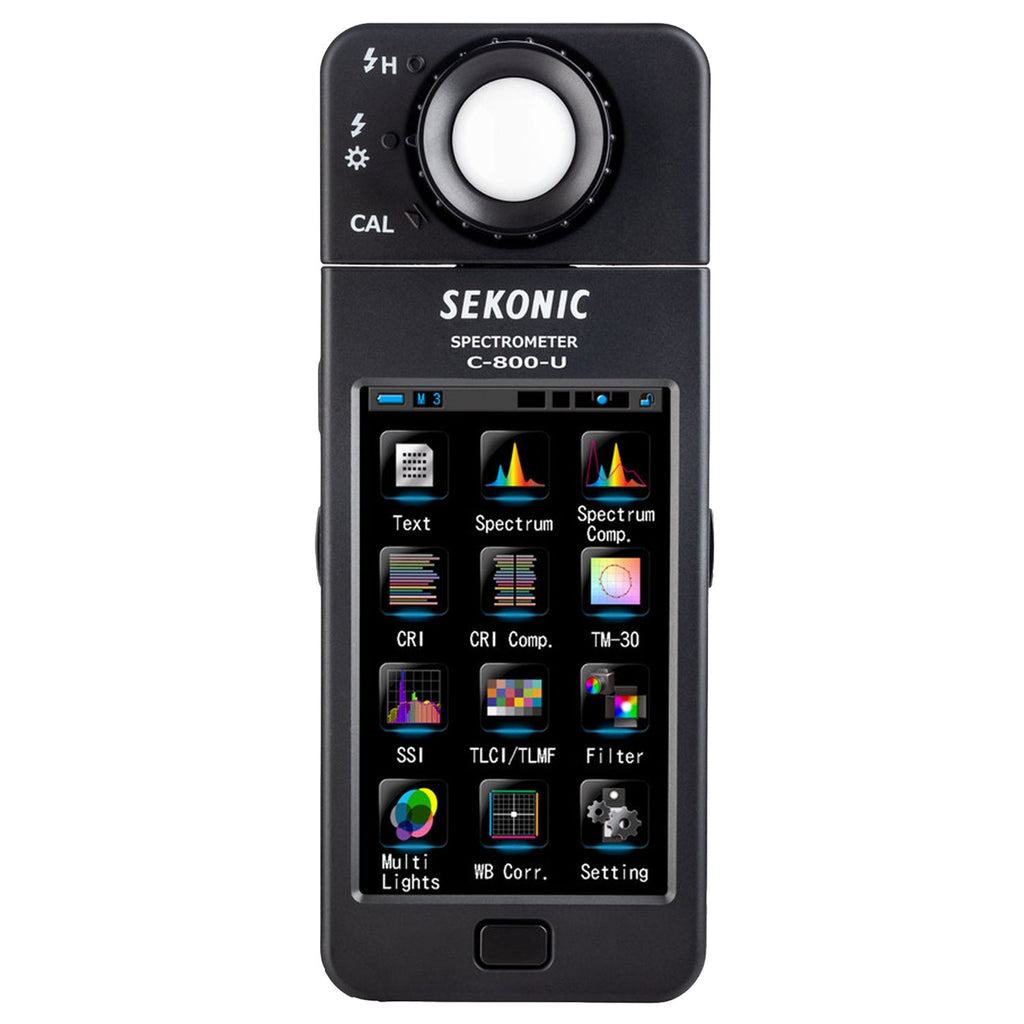

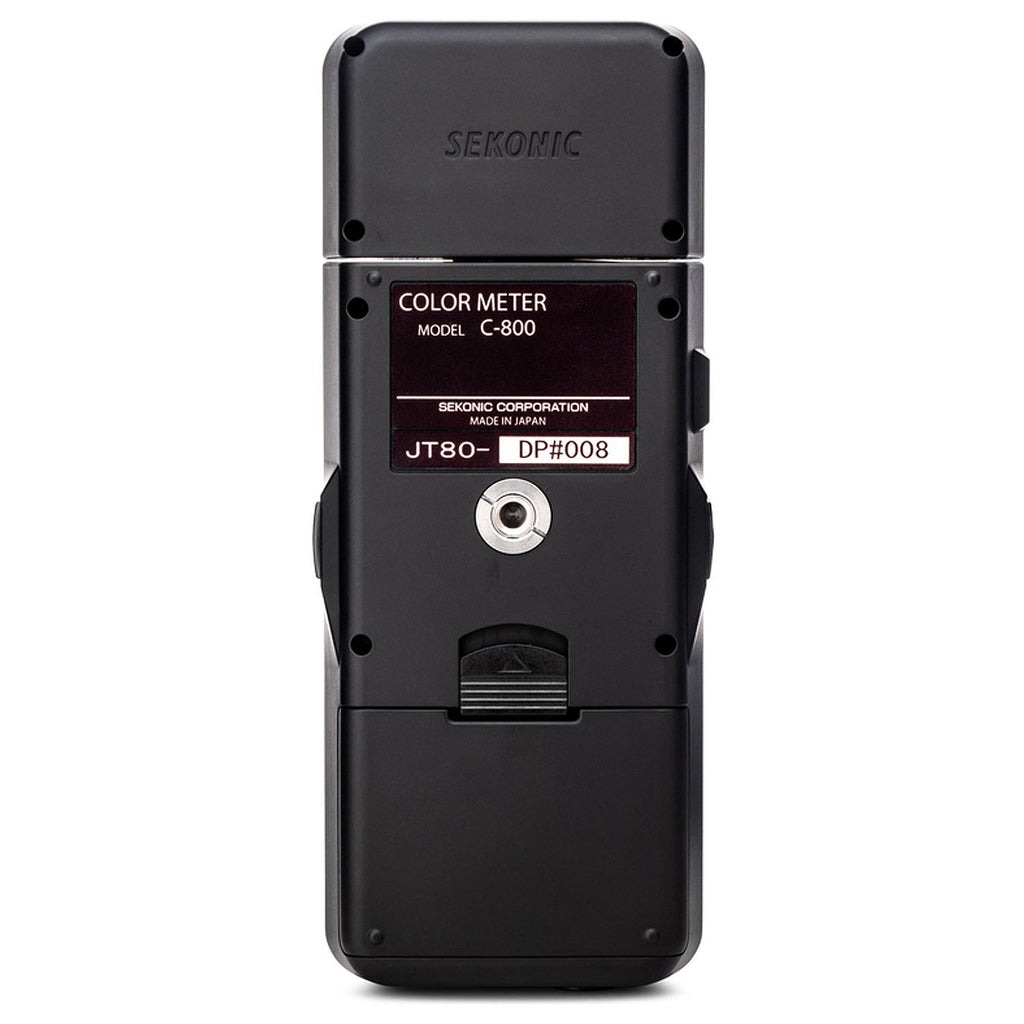

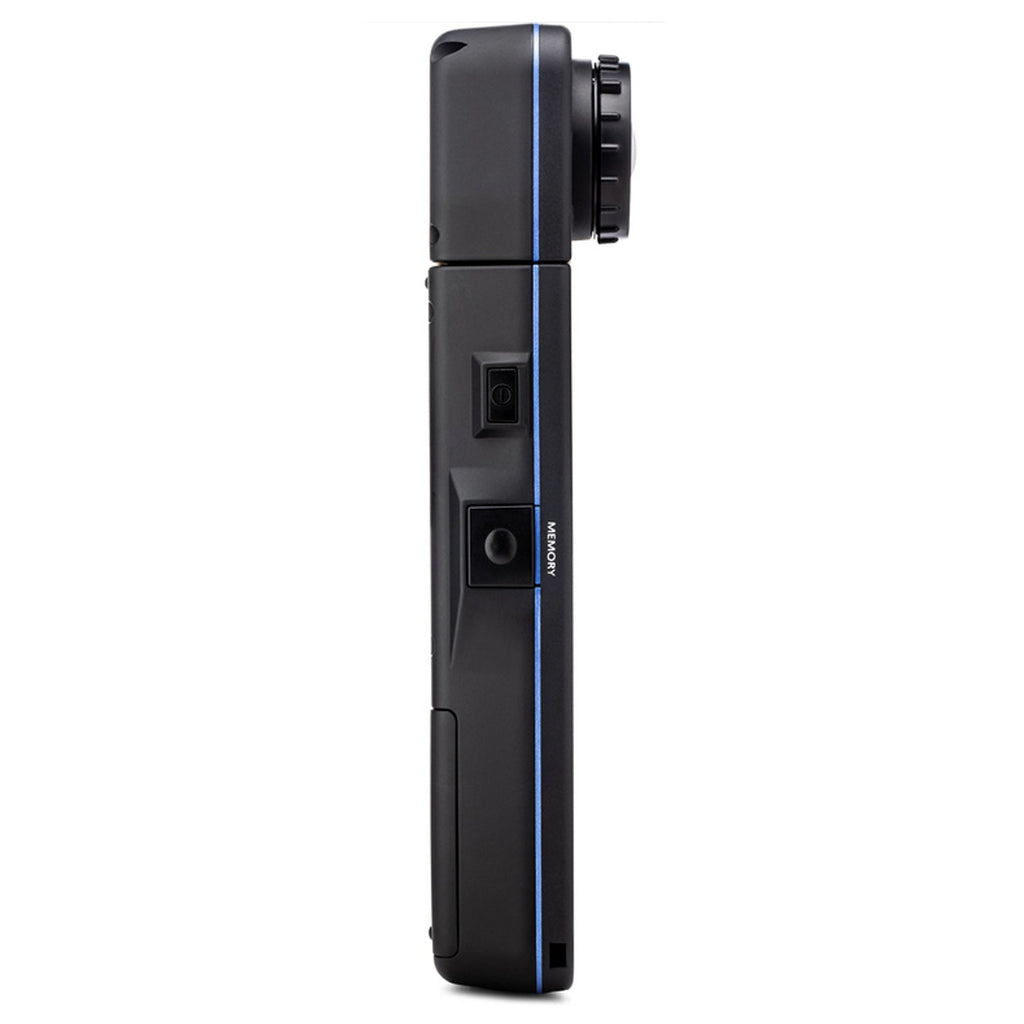

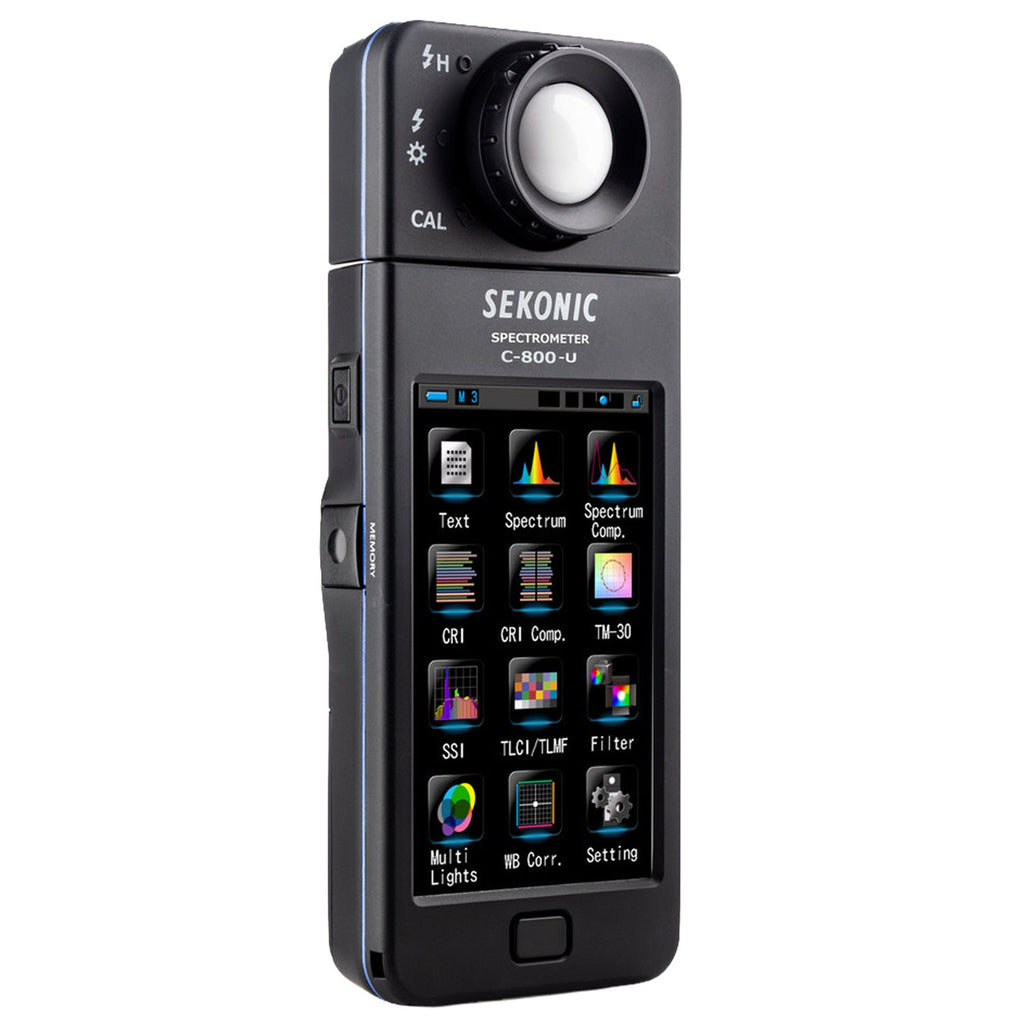

Sekonic Spectrometer C-800-U
Sekonic C-800 Spectromaster:
The Super Tool for Color Correction
The SpectroMaster C-800 is a portable handheld spectrometer designed especially for the still and motion capture industry.
Additionally, it also addresses many industrial lighting applications that require its unique color interpretation and color correction modes. Utilizing Sekonic’s CMOS linear image sensor design and software, the C-800 can measure every light source (LED, HMI, Fluorescent, Flash, Natural Light spectrum) with accurate color control and expanded color interpretation.
Developed from the same platform as the Spectrometer C-7000, the C-800 capture spikes in light source output, especially fluorescent and LED lighting, providing unmatched color measurement performance. In addition, it offers color correction in both CCi and LBi (Camera/Lighting) filters, as well as White Balance corrections and Multi-Light comparison, defining the C-800 as a color evaluation and color balancing spectrometer. With its expanded Color Rendering Properties, the C-800 addresses the evolutionary progress of emerging light sources. Software enhancements now include Spectral Similarity Index (SSI) Television Lighting Consistency Index (TLCI), Television Luminaire Matching Factor (TLMF) and Technical Memorandum (TM-30).
Spectrometer (Color Meter)
- Measures Color Temperature (CCT) from 1,600 to 40,000K
- Expanded Color Interpretation
- Provides Color Compensation DATA
- Provides Light Quality Information such as CRI, TM-30, SSI, TLCI/TLMF, and Spectrum distribution graph
- For Still, Motion and Industrial applications
- For all Light Sources
Illuminance (Light Meter)
- Measures Brightness of Light Sources
- Provides LUX, Foot-Candle, LUX SECOND and FOOT-CANDLE Second
- Provides AMBIENT or FLASH Measurements
- Illumination (1 to 200,000lx = 0.09 to 18,600fc in ambient light,
20 to 20,500lx • s = 1.86 to 1,900fc • s in flash light) *1 - Conforms to Class A of JIS C 1609-1: 2006
*Models sold in some countries do not display illuminance and exposure in fc (fc*s) due to legal restrictions.
Sekonic C-800 Spectrometer
| Measuring Range and Modes | |
| Measuring Modes | Ambient light, Cordless flash, Cord-in (PC) flash |
| Measuring Ranges | Ambient light: 1 to 200,000 lx*, 0.09 to 18,600 fc Flash light: 20 lx・s to 20,500 lx・s, 1.86 fc・s to 1900 fc・s *Class A of JIS C 1609-1: 2006 "Illuminance meters Part 1: General measuring instruments" |
| Spectral Wavelength Range | 380 to 780 nm |
| Color Measuring Mode (Display Mode) | Text mode, Spectrum mode, Spectrum comparison mode, CRI mode, CRI comparison mode, TM-30 mode, SSI mode, TLCI/TLMF modem Filter mode (lighting and camera filter), Multi Lights mode, White Balance Correction mode |
| Color Measuring Ranges | Ambient light: 1600 to 40,000 K Flash light: 2500 to 40,000 K |
| Color Measuring Units | Color parameters: Correlated color temperature (CCT), Deviation (Δ uv), x, y, Hue, Saturation Color rendering properties: CRI (Ra/R1 to R15), TM-30-18 (Rf, Rg), SSI (t, d, 1, 2) TLCI, TLMF Photo/cinematography: LB/CC filter number (camera/lighting filter), LB/CC index, CC number |
| Target Color Temperature Range | 2500 to 10,000 K |
| Shutter Speeds Range | Ambient light: Automatic: 15 seconds (maximum), 0.5 seconds (minimum) Flash light: 1 to 1/500 seconds (plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400) |
| Memory | Yes (99 times) |
| Contrast/Comparison Function | Yes |
| Custom Settings | Yes (12 custom settings) |
| Measuring Data Output | Memorized value with graphic |
| General Specifications | |
| Measuring System | Spectro meter Incident light: Swivel head |
| Sensor | CMOS linear image sensor |
| LCD | 4.3" (10.9 cm) color dot matrix touch panel LCD Backlight: Yes |
| Tripod Socket | Yes |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Power Source | 1.5 V x 2 (AA battery), USB bus-power |
| Dimensions | 7.2 x 2.87 x 1.06" (18.3 x 7.3 x 2.7 cm) |
| Weight | 0.51 lbs (0.23 kg) |
| Model # | C-4000 | C-7000 | C-800 |
| Applications | Lighting designer, Lighting installer, Museum lighting coordinator, Photographer | Industrial (lighting manufacturer, lighting designer, etc.), Academic research | Photographer, Filmmaker, industrial use |
| Measuring Range | 1,600 to 40,000K | 1,543 to 100,000K | 1,600 to 40,000K |
| 5 to 10,000lx | 1 to 200,000lx | 1 to 200,000lx | |
| 20 to 20,500lxs | 20 to 20,500lxs | ||
| Measurement Unit | Kelvin, Δuv, lx, fc, | Kelvin, Δuv, lx, fc, Hlx, Hfc, | Kelvin, Δuv, LB/CC index, |
| Ra, Rf, Rg, xy | Ra, R1 to R15, Rf, Rg, SSIt, | LB/CClf, LB/CCcf, lx, fc, Hlx, | |
| SSId, TLCI, XYZ, xyz, u'v', | Hfc, Ra, R1 to R15, Rf, Rg, | ||
| λd, λp, Pe, PPFD | SSIt, SSId, TLCI, xy, | ||
| Hue/Saturation | |||
| Display Mode | Text | Text, Spectrum, Spectrum | Text, Spectrum, Spectrum |
| comp., CRI, CRI comp., | comp., CRI, CRI comp., | ||
| TM-30-18, SSI, TLCI/ | TM-30-18, SSI, TLCI/TLMF, | ||
| TLMF, CIE1931 (CIE1964), | Filter (Camera or Lighting), | ||
| CIE1931 (CIE1964) comp., | Multi lights, WB comp. | ||
| CIE1976, CIE 1976 comp. | |||
| Software | Smartphone/tablet app, Utility | Excel Add-in, SDK, Utility | Utility |
| Other Functions | Continuous/Single measurement selection, Up to 99 memory, Bluetooth interface for smartphone/tablet app | Continuous/Single measurement selection, Up to 999 memory, 1nm increment spectrum output by Utility, 2°or 10° field of view | Up to 99 memory, Memory title can be edited in Utility, Memorized value can be saved back and forth between computer and meter. |
