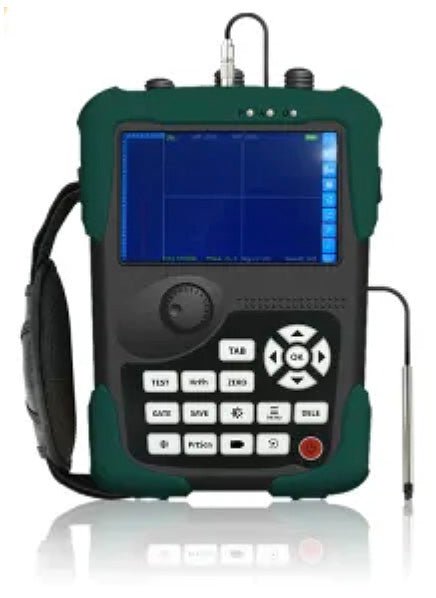

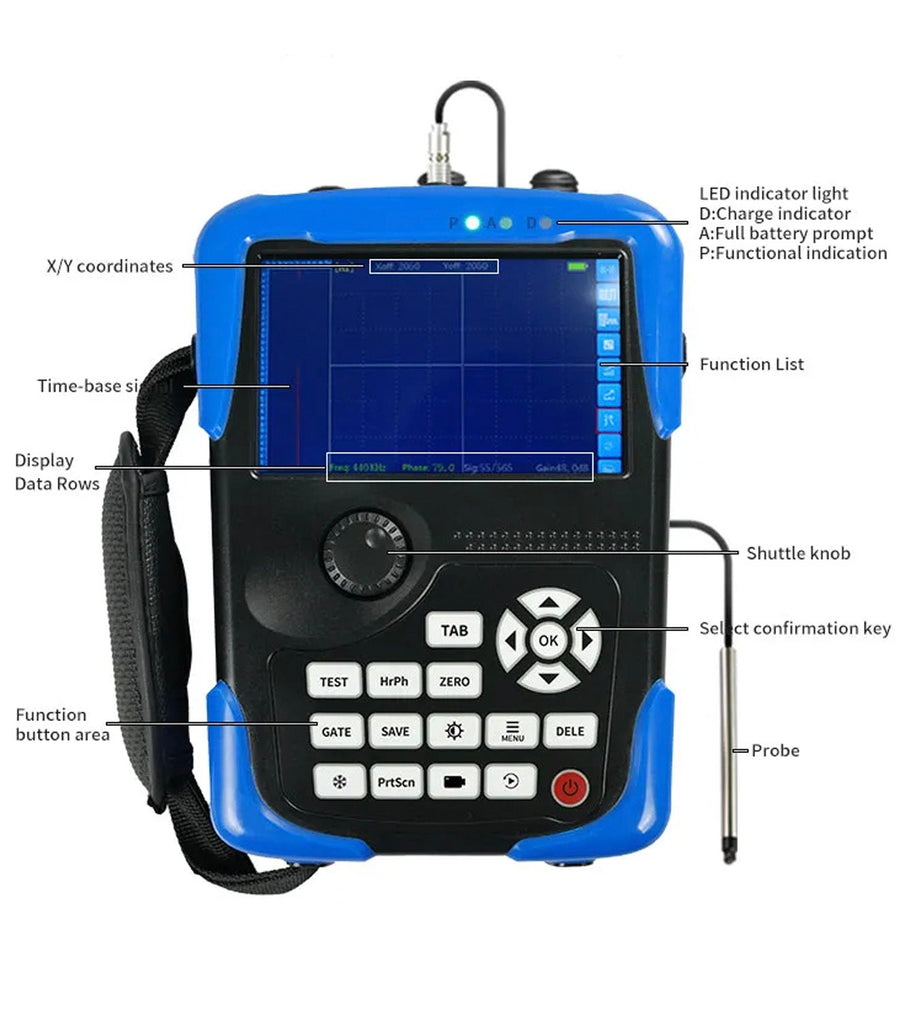

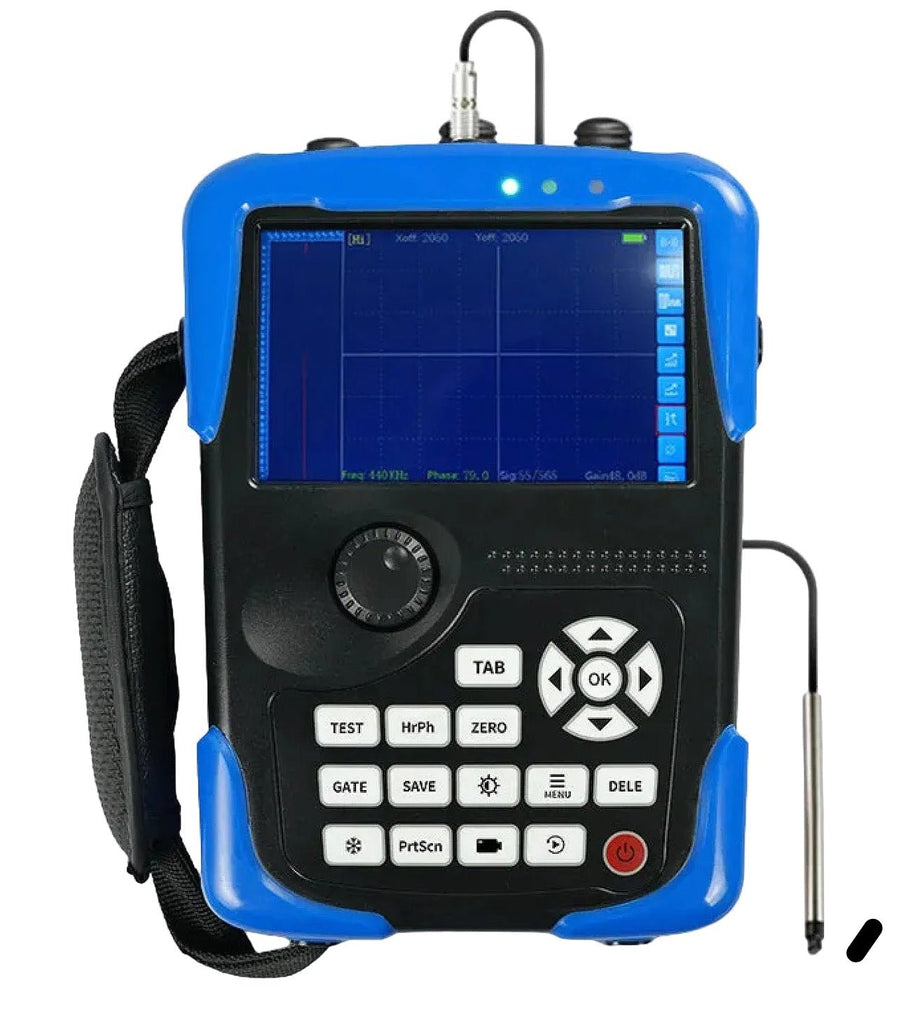

The Vertex Series Digital Eddy Current Flaw Detectors are advanced, non-destructive testing (NDT) instruments engineered for fast, accurate detection of surface cracks, pores and defects in conductive metals.

Designed for demanding industrial inspection, the Vertex60, Vertex80 and Vertex80A deliver high sensitivity and stable performance across a wide excitation frequency range, ensuring reliable results even on rough, scaled or machined surfaces.

With an intuitive interface and streamlined setup requiring minimal parameter adjustment, the Vertex Series is ideal for both routine inspections and advanced quality control applications in production and field environments.

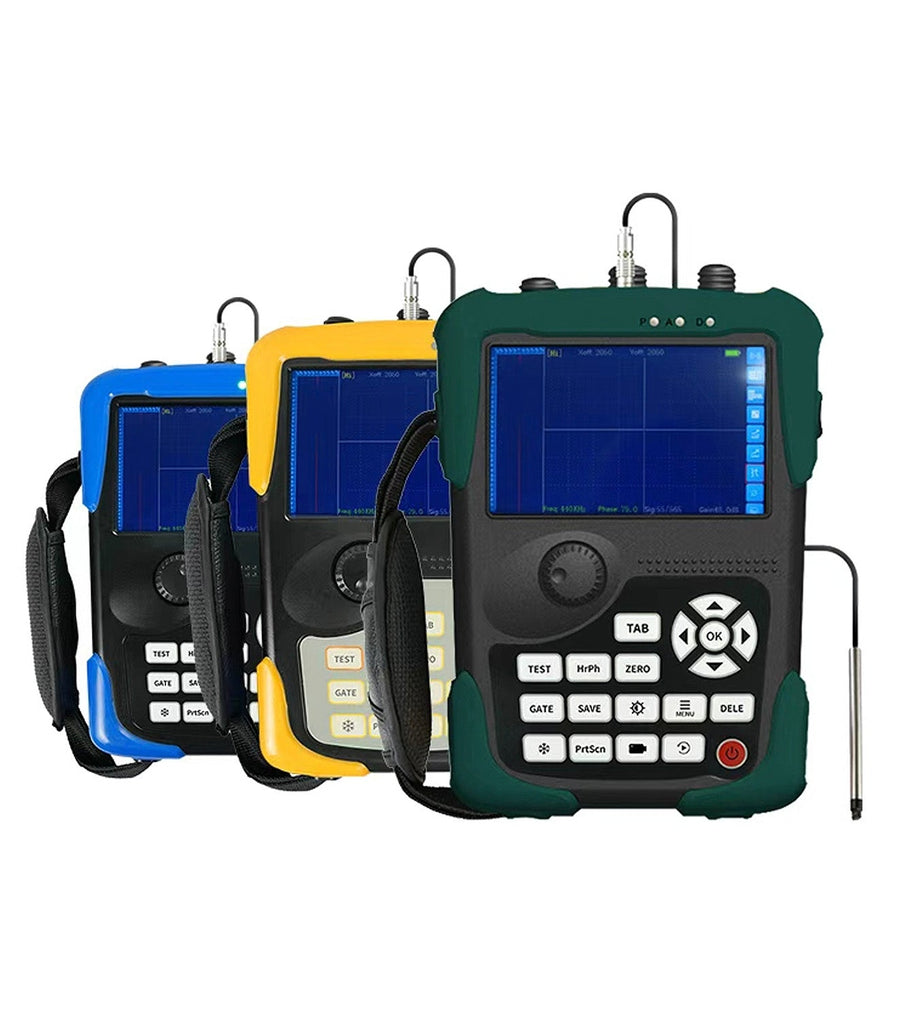

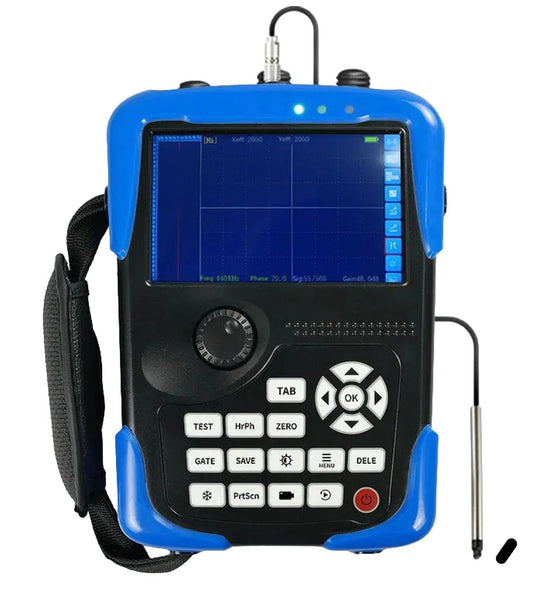

Available Models: Vertex60 · Vertex80 · Vertex80A

  • Wide Frequency Range: Adjustable excitation frequency from 10 Hz to 12 MHz supports diverse inspection scenarios
  • High Gain Control: 0–50 gain with fine step adjustment enables precise defect signal amplification
  • Efficient Operation: One-key auto-zero and rapid setup with three parameters or fewer
  • Probe Compatibility: Supports bridge-type probes for flexible surface inspections
  • Large Storage Capacity: 8 GB memory with up to 10,000 pre-settable parameter configurations
  • Advanced Signal Processing: Noise suppression and defect signal extraction improve detection accuracy

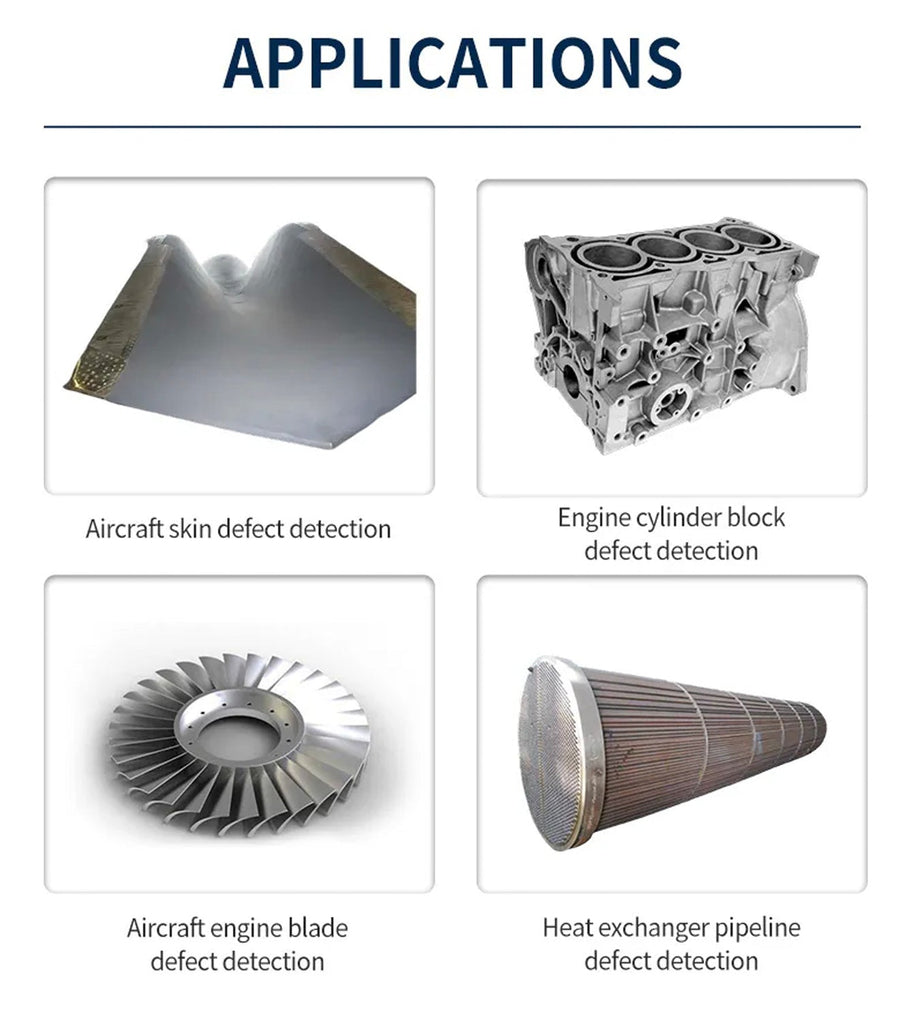

Applications

  • Surface crack and defect detection in steel bars, plates and other conductive metal components
  • Quality control in manufacturing, aerospace, automotive and metalworking industries
  • Inspection of rough, coated or machined metal surfaces

Why Choose the Vertex Series?

  • Precision: High-frequency capability combined with adjustable gain ensures dependable flaw detection
  • Ease of Use: Simplified operation reduces training time and increases inspection efficiency
  • Durability: Designed for consistent performance in harsh industrial environments
  • Scalability: Multiple models and extensive preset storage support evolving inspection needs

Vertex Series Comparison

  • Vertex60 – Simple surface crack detection for routine quality control.
    Ideal for routine production inspections. Up to 12 MHz, bridge-type probes, fast setup and cost-effective performance.

  • Vertex80 – Greater flexibility and sensitivity for mixed applications.
    Up to 20 MHz, supports single-ended and bridge probes, higher gain and IP54 protection for broader applications.

  • Vertex80A – Maximum performance for critical inspections.
    Full 20 MHz, all probe types including coupled, 64-bit processing, massive expandable storage and IP65protection.

Specifications
Parameter VERTEX-60 VERTEX-80 VERTEX-80A
Supported Probe Types Bridge type Single-ended, bridge type Single-ended, bridge type, coupled
Frequency Range 10 Hz – 12 MHz 10 Hz – 20 MHz 10 Hz – 20 MHz
Excitation Voltage 0–10 V (0.1 V steps) 0–12 V (0.1 V steps) 0–12 V (0.1 V steps)
High Amplification Gain 0–50 (step 1) 0–100 (step 1) 0–100 (step 1)
Drive Levels 4 levels 8 levels 8 levels
Processor 32-bit dual-core 32-bit dual-core 64-bit dual-core
Preset Detection Parameters 10,000 100,000 1,000,000
Internal Memory 8 GB (non-expandable) 8 GB (non-expandable) 64 GB (expandable up to 1 TB)
Environmental Protection None IP54 IP65
Low Amplification Gain 0–250 (step 1) 0–250 (step 1) 0–250 (step 1)
Low-end Frequency Adjustment 0–120 (step 1) 0–120 (step 1) 0–120 (step 1)
High-end Frequency Adjustment 0–120 (step 1) 0–120 (step 1) 0–120 (step 1)
Grid Grayscale 10 levels adjustable
X-axis Gain –100 to +100
Y-axis Gain –100 to +100
High-pass Filter 0–500 Hz
Low-pass Filter 10 Hz – 10 kHz
Digital Filter 1–100
Downloads

PDF
BRK Vertex Series Datasheet



Probes

Large Weld Probe

Fast coverage for long welds and large areas.

  • Continuous inspection on long weld runs
  • Finds cracks, lack of penetration, slag inclusions
  • Ideal for pipelines, ship hulls, offshore structures

Applications: Pressure vessel seams, steel box girders, truss joint welds

Small Weld Probe

Precision probe for narrow welds and tiny joints.

  • Targets tight, small, or intricate weld features
  • Great for micro solder joint inspection on circuit boards
  • Supports defect screening in high-density assemblies

Applications: Aviation solder points, battery tabs, controller solder joints

Axe-Type Weld Probe (Transverse)

Directional control for fillets, T-joints, complex weld shapes.

  • Built for fillet welds, T-joints, complex geometry
  • High directivity for better positioning and repeatability
  • Preferred for structural weld inspection in heavy industry

Applications: Steel structures, shipbuilding, pressure vessels



External Encircling Probe

Non-contact inspection with full 360° coverage.

  • No direct contact required with the test surface
  • Detects circumferential defects around the full diameter
  • Optimized for production lines and long stock

Applications: Pipe inspection, rod inspection, industrial assembly lines



Internal Rotary Probe

Designed to find internal defects in tubes and bores.

  • Detects internal flaws in pipes, holes, hollow structures
  • Works in slender, small-diameter tubes
  • Strong choice for maintenance and in-service inspection

Applications: Heat exchanger tubes, boiler tubes, condenser tube maintenance



Saddle-Type Probe

Conforms to cylinders for efficient circumferential scanning.

  • Built for curved welds and cylindrical workpieces
  • Customizable curvature: 20, 60, 120 arcs (2 pieces each)
  • Full circumferential detection with less teardown

Applications: Pipes, shafts, petroleum, power, shipbuilding maintenance



General Pen Probe

Flexible pen-style probe for controlled surface scanning.

  • Probe angle selected to match inspection requirements
  • Keep probe perpendicular to the inspection surface
  • Maintain steady speed and consistent lift-off

Applications: General surface inspection and scanning workflows



10mm Pen Probe

High-precision probe for localized defect screening.

  • Excellent for complex surfaces and tight inspection zones
  • Supports micro-defect localization and repeatable scanning
  • Tune frequency and speed based on thickness and defect type

Applications: Precision manufacturing, aerospace, power maintenance



Right-Angle Pen Probe

Reaches corners, edges, and confined inspection points.

  • Right-angle geometry for tight access areas
  • High sensitivity for complex geometric workpieces
  • Enables rapid defect localization with less repositioning

Applications: Welds, rivet holes, intricate structures in aerospace and energy





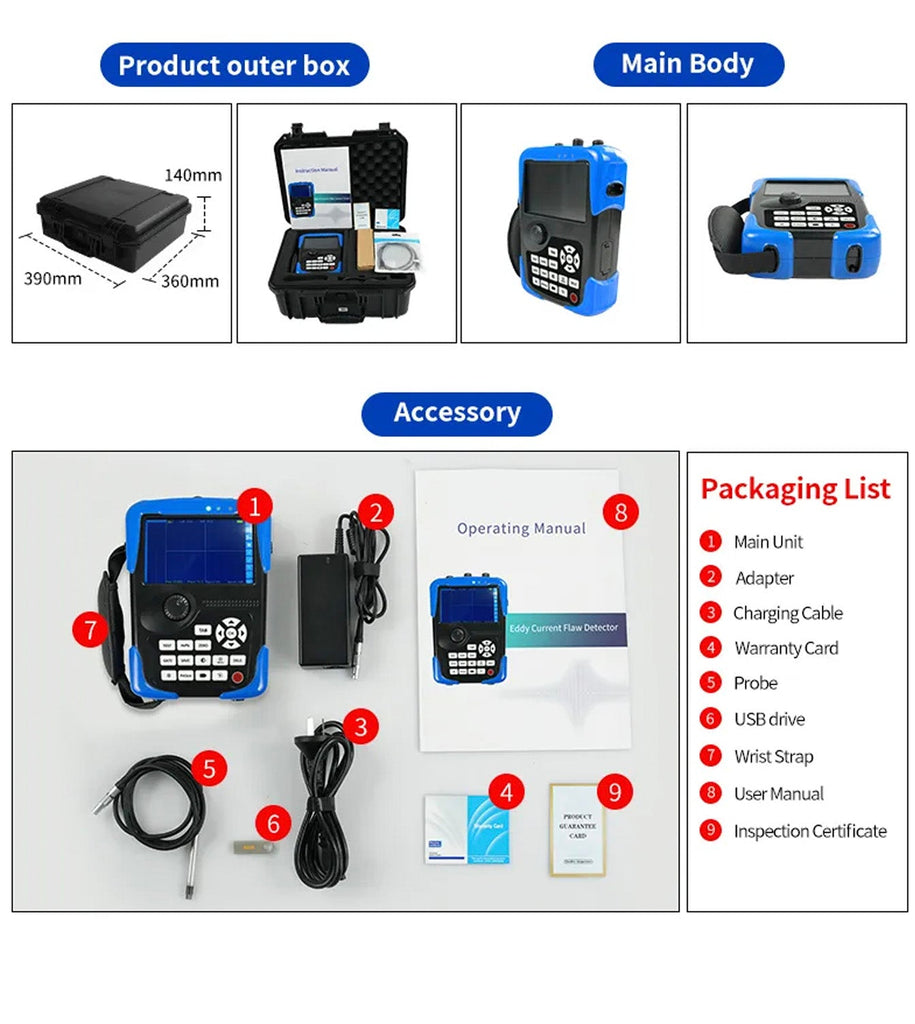

Shipping Weight: 5.0 lb

Product Type: Ultrasonic Flaw Detector
