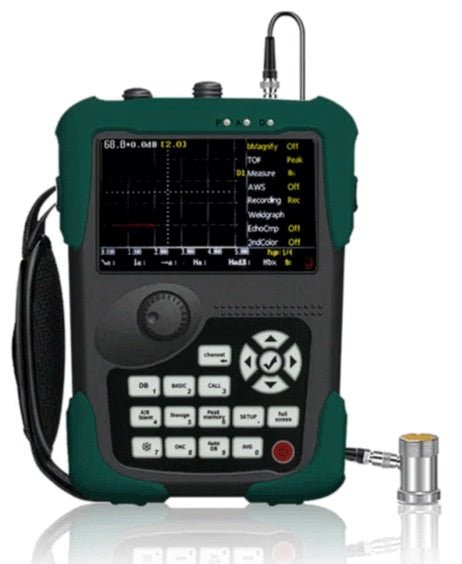

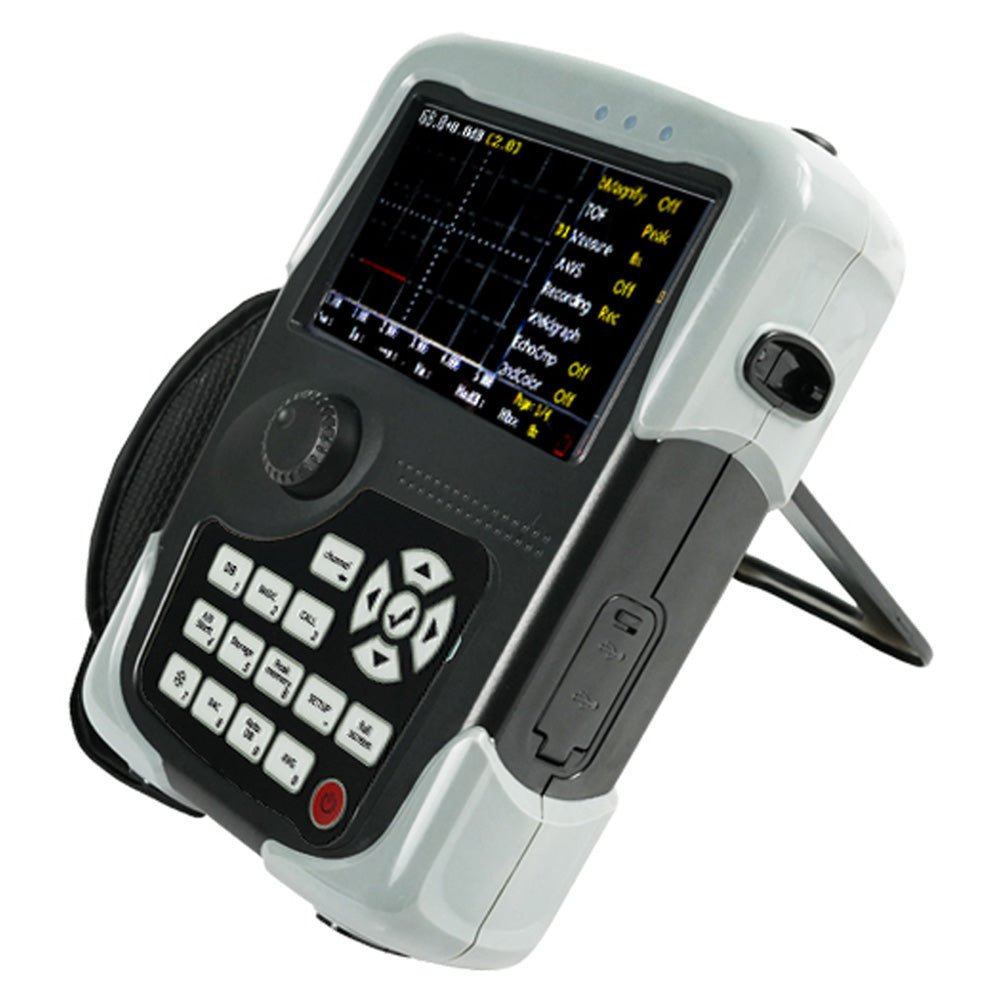

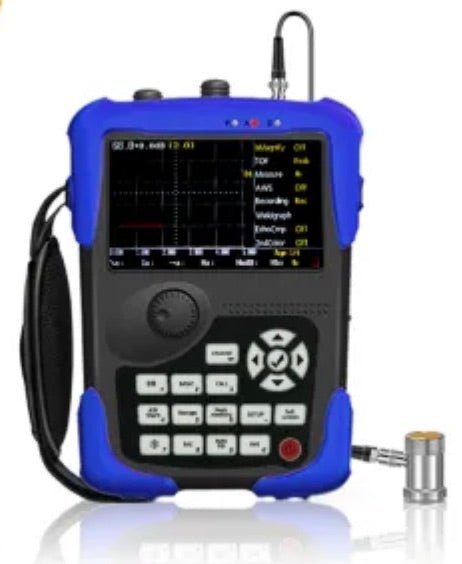

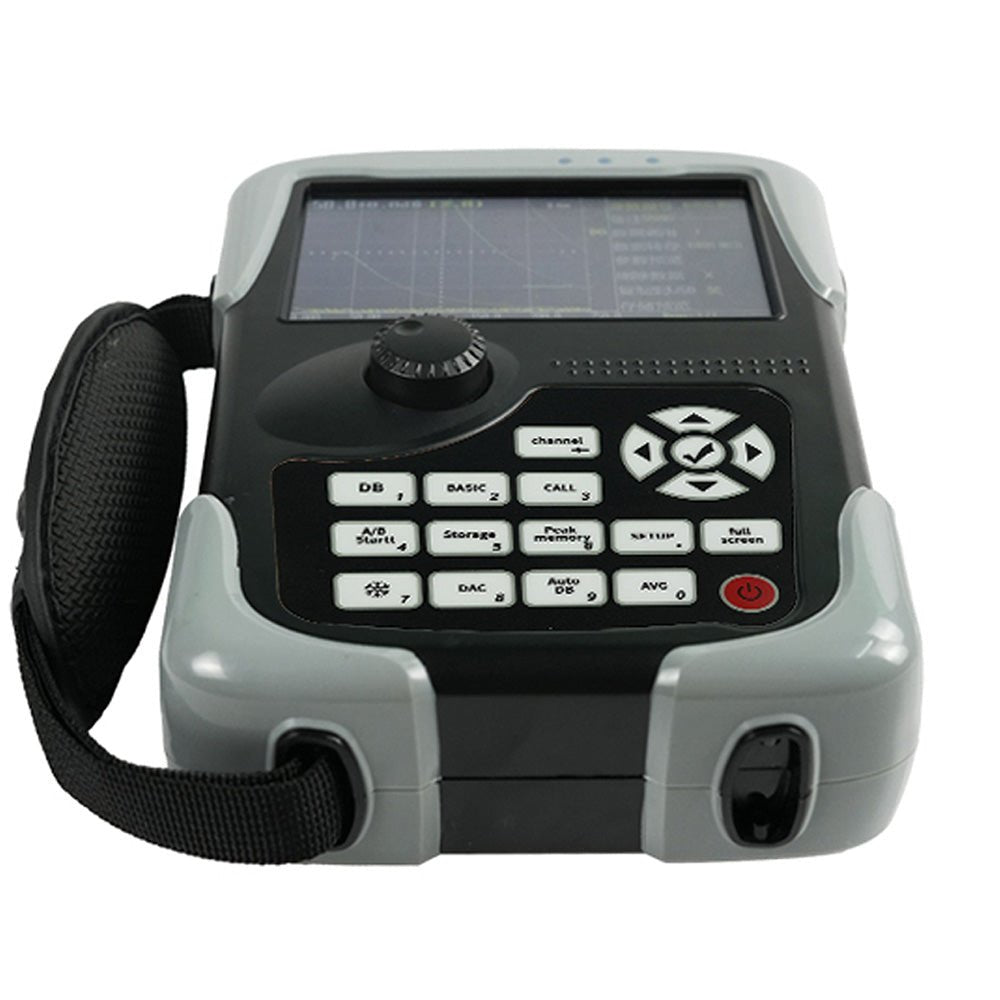

M-ULTRA5
The M-Ultra Series is a rugged ultrasonic flaw detector engineered for damage-free evaluation of internal defects across a wide range of materials. Designed for demanding field and plant environments, it delivers high-resolution detection of cracks, porosity and inclusions in metals, composites, ceramics and plastics across a 0–25,000 mm testing range (depending on model). Advanced noise suppression and a waterproof, impact-resistant enclosure ensure dependable performance from aerospace hangars to power plants.

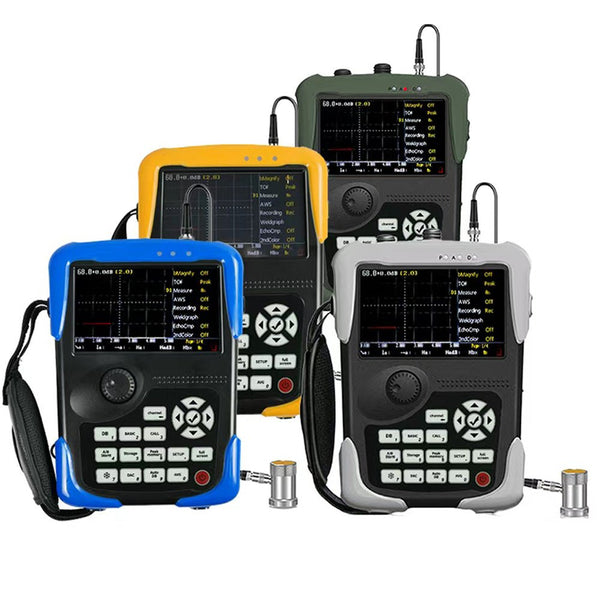

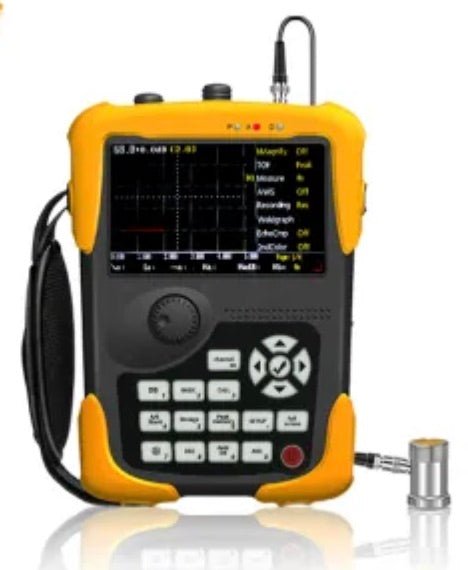

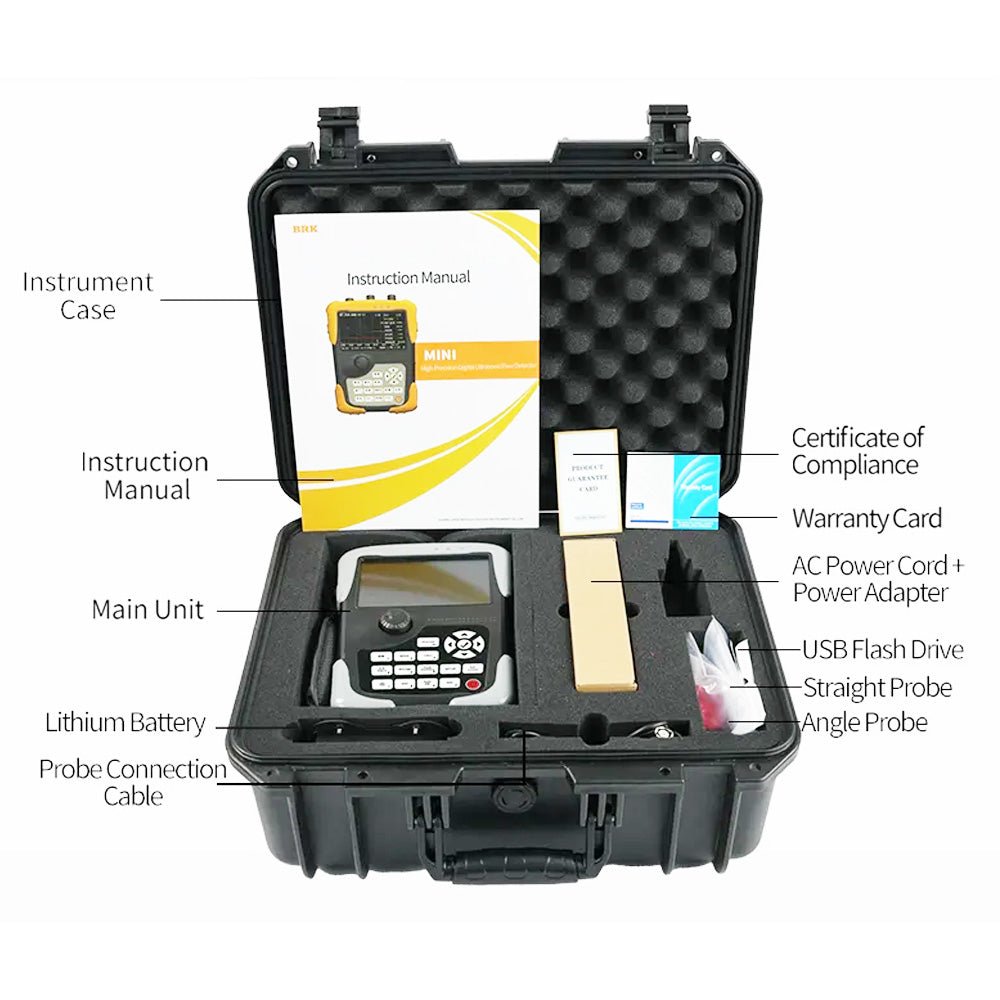

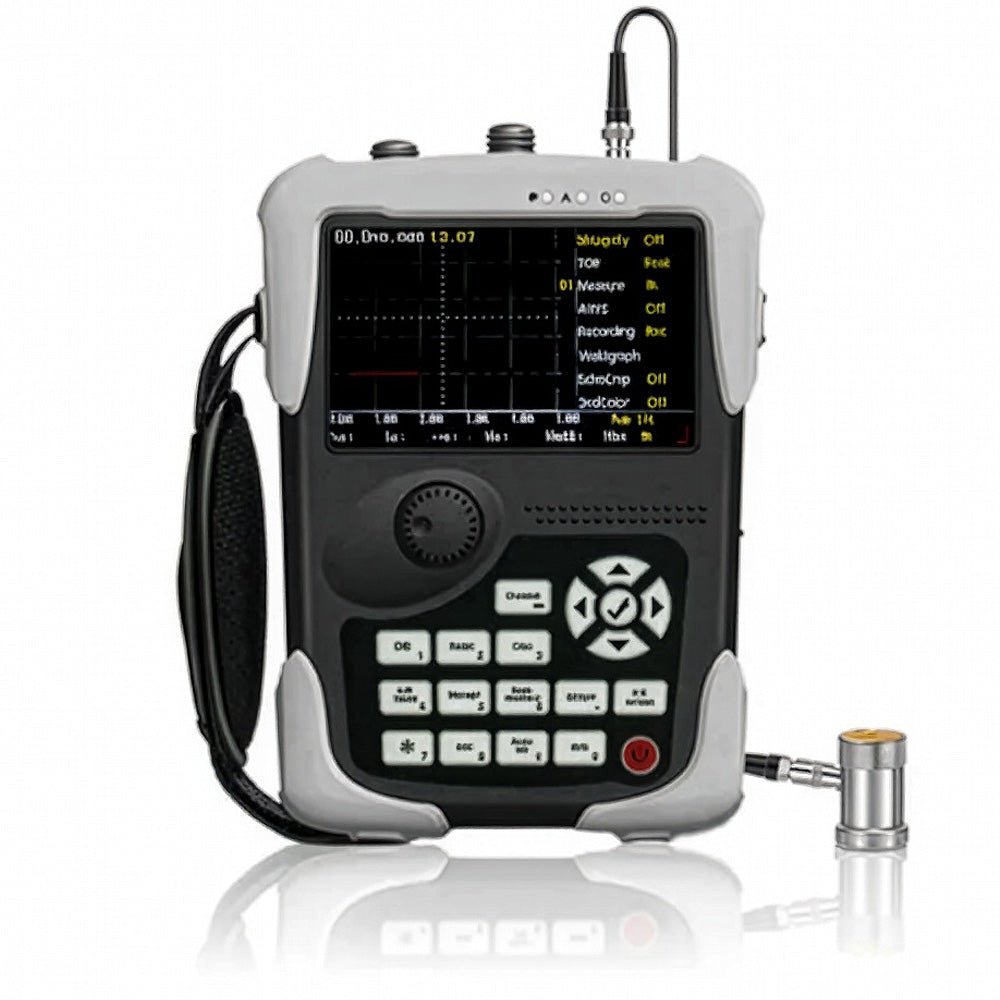

Available Models: M-Ultra5 · M-Ultra10 · M-Ultra20 · M-Ultra30
Applications

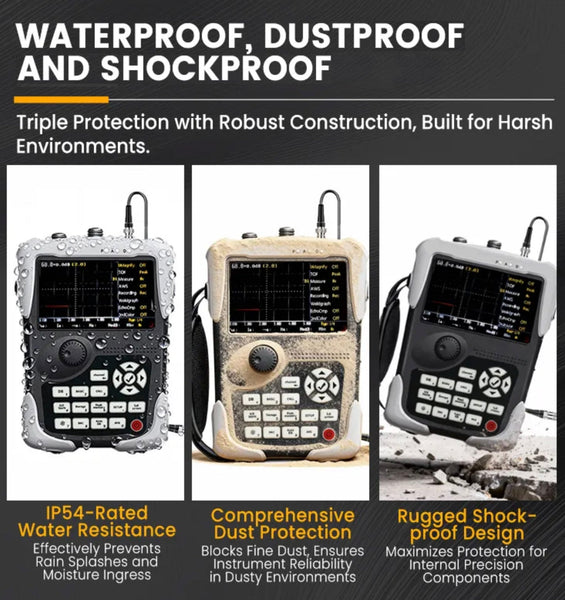

Why Choose M-Ultra?
| Parameter | M-Ultra 5 | M-Ultra 10 | M-Ultra 20 | M-Ultra 30 |
|---|---|---|---|---|
| Detection Range (mm) | 0–5,000 | 0–10,000 | 0–15,000 | 0–25,000 |
| Sound Velocity (m/s) | 1,000–15,000 | 1,000–15,000 | 1,000–20,000 | 1,000–25,000 |
| Sensitivity Reserve | ≥60 dB | ≥62 dB | ≥65 dB | ≥66 dB |
| Dynamic Range | ≥42 dB | ≥46 dB | ≥48 dB | ≥50 dB |
| Horizontal Linearity Error | ≤0.2% | ≤0.1% | ≤0.1% | ≤0.1% |
| Vertical Linearity Error | ≤3% | ≤3% | ≤2.5% | ≤2% |
| Far-Zone Resolution | ≥26 dB | ≥28 dB | ≥30 dB | ≥32 dB |
| Memory | 8 GB | 8 GB | 8 GB | 8 GB (Expandable to 64 GB) |
| Frequency Bands (MHz) | 0–5, 5–10 | 0–5, 5–15 | 0–5, 5–15, 15–25 | 0–5, 5–15, 15–25 |
| Clutter Suppression | None | Yes | Up to 60% | Up to 60% |
| Noise Reduction | None | None | 4-level | 4-level |
| Secondary Wave Color | None | Yes | Yes | Yes |
| Pulse Type | 400 V Spike | 400 V Spike | 400 V Spike | Spike / Square |
| AWS Compliance | None | Yes | Yes | Yes |
| Wave Comparison | None | None | Yes | Yes |
| Language Support | Chinese | Chinese | Chinese | Chinese / English / French |
Machinable probe bottom supports multiple shapes and customizable incident angles for versatile ultrasonic inspection.
Common interfaces: C6, C9 (LEMO-1), Q9 (BNC)
Applications:
Excellent acoustic impedance matching for metallic materials, designed for reliable flaw detection across common inspection tasks.
Common interfaces: C6, C9 (LEMO-1), Q9 (BNC)
Applications:
Improved coupling on rough or curved surfaces with low scattering noise and high near-surface resolution.
Common interfaces: Q6, C5 (LEMO-00), L5 (Microdot)
Applications:
Quarter-wavelength matching layer supports maximum energy output and stable performance in liquid coupling conditions.
Applications:
Effective detection depth of 0.5 mm–9 mm, designed to overcome near-surface blind zones common in other probe types.
Applications:
Reduces coupling effects on uneven weld spots, with crystal options optimized for different spot weld dimensions.
Default interface: Side-mounted Microdot
Applications:
20–50 MHz performance with a solid delay block, designed for high-resolution inspection and minimal focal spot diameter.
Applications:
Supplied with a 0° longitudinal wave delay block, with a customizable probe bottom for high-temperature inspection needs.
Applications:
Generates shear waves via vertical incidence for confined or hard-to-access inspection areas.
Applications:
