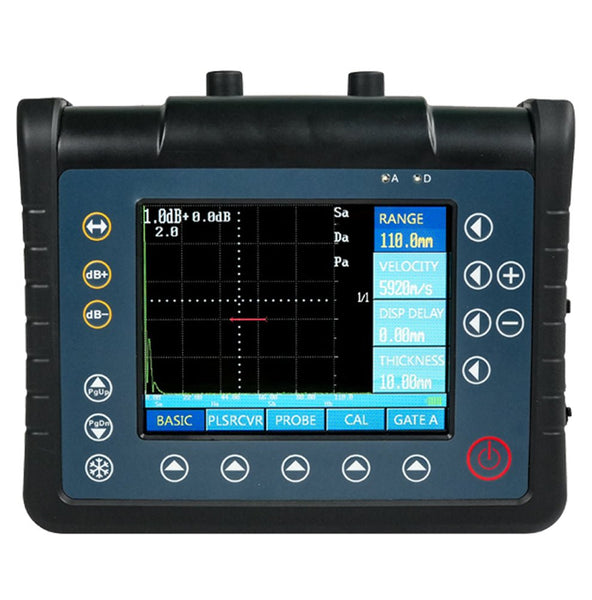

ANYSCAN31
Available Models: Anyscan32 · Anyscan31
With ≥60 dB sensitivity, a bright 5.7-inch color display and over six hours of continuous battery operation, the Anyscan delivers reliable on-site results in demanding industrial environments. Lightweight, durable and easy to operate, it is ideal for field inspections in aerospace, automotive, manufacturing and heavy industry applications.
The Anyscan provides precise ultrasonic flaw detection for welds, thin metals such as copper and aluminum, and non-metallic materials including plastics, ceramics, and marble. Its high sensitivity enables detection of fine cracks, pores, and inclusions while the intuitive user interface ensures fast setup and efficient inspections.
Designed for portability and durability, the Anyscan supports professional inspectors who require consistent performance in the field or on the shop floor.
High Sensitivity Detection
≥60 dB sensitivity for identifying micro-cracks, voids, inclusions, and other internal defects.
Long Battery Life
Built-in 5200 mAh rechargeable battery supports more than six hours of continuous operation.

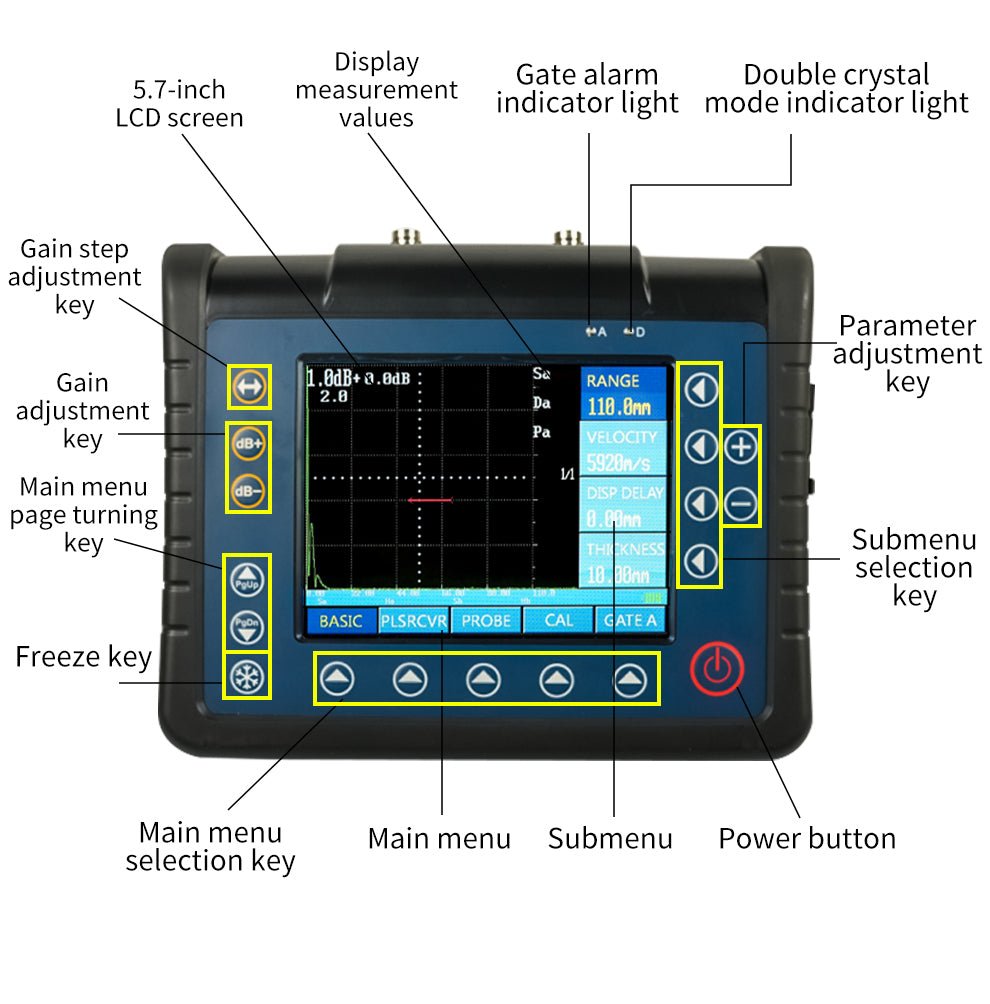

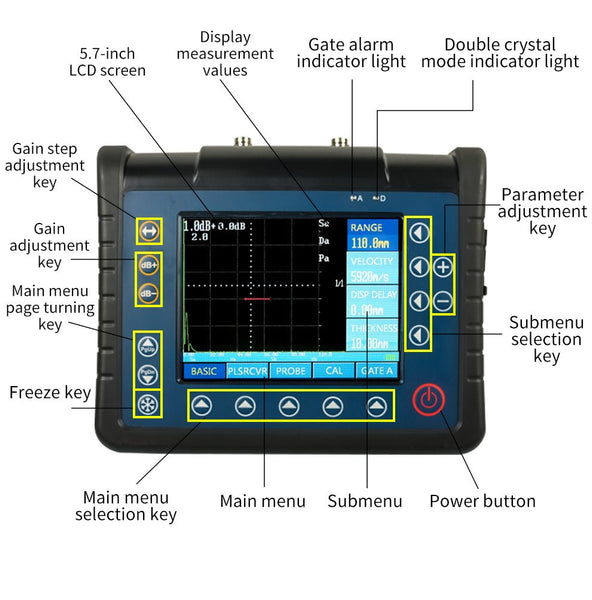

User-Friendly Design
Lightweight, ergonomic, and shock-resistant housing optimized for field inspections.

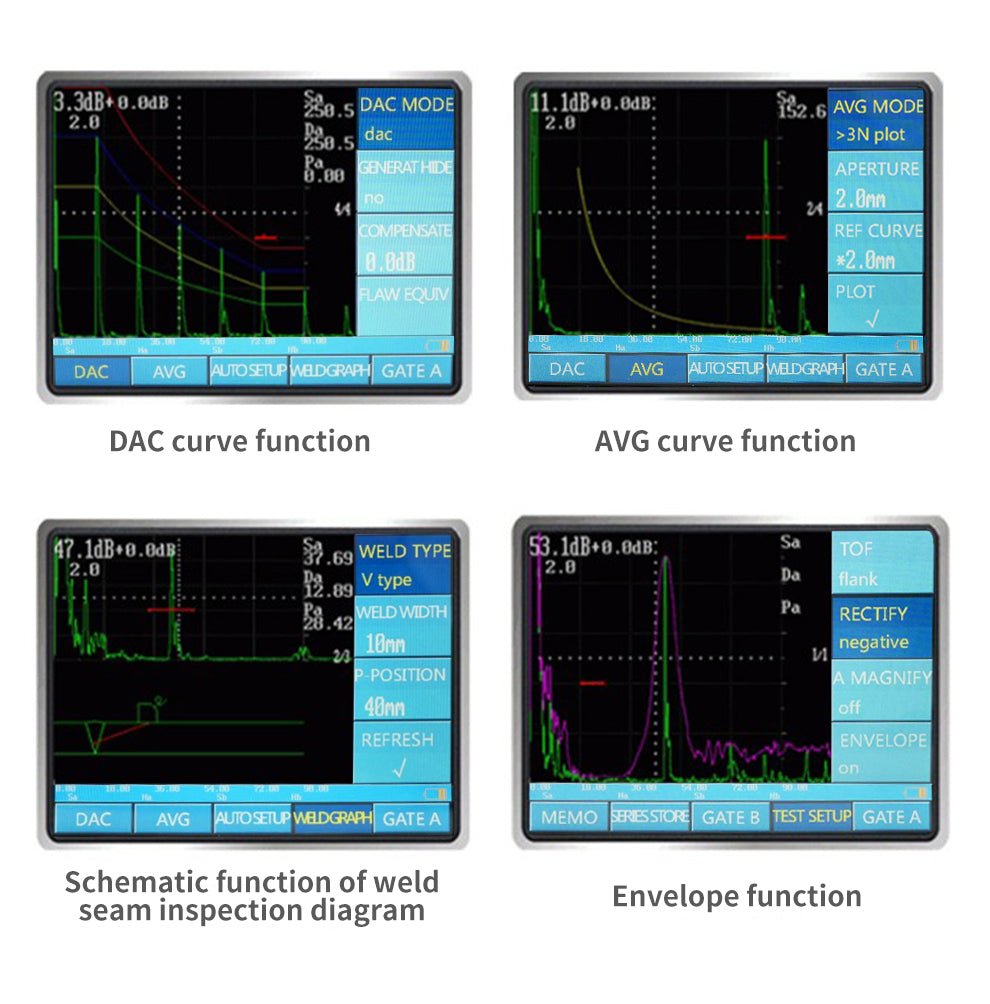

Advanced Color Display
5.7-inch high-brightness LCD with clear waveform presentation and intuitive menu navigation.
Versatile Testing Capability
Suitable for metals, plastics, ceramics, composites, adhesives, and irregular-shaped components.

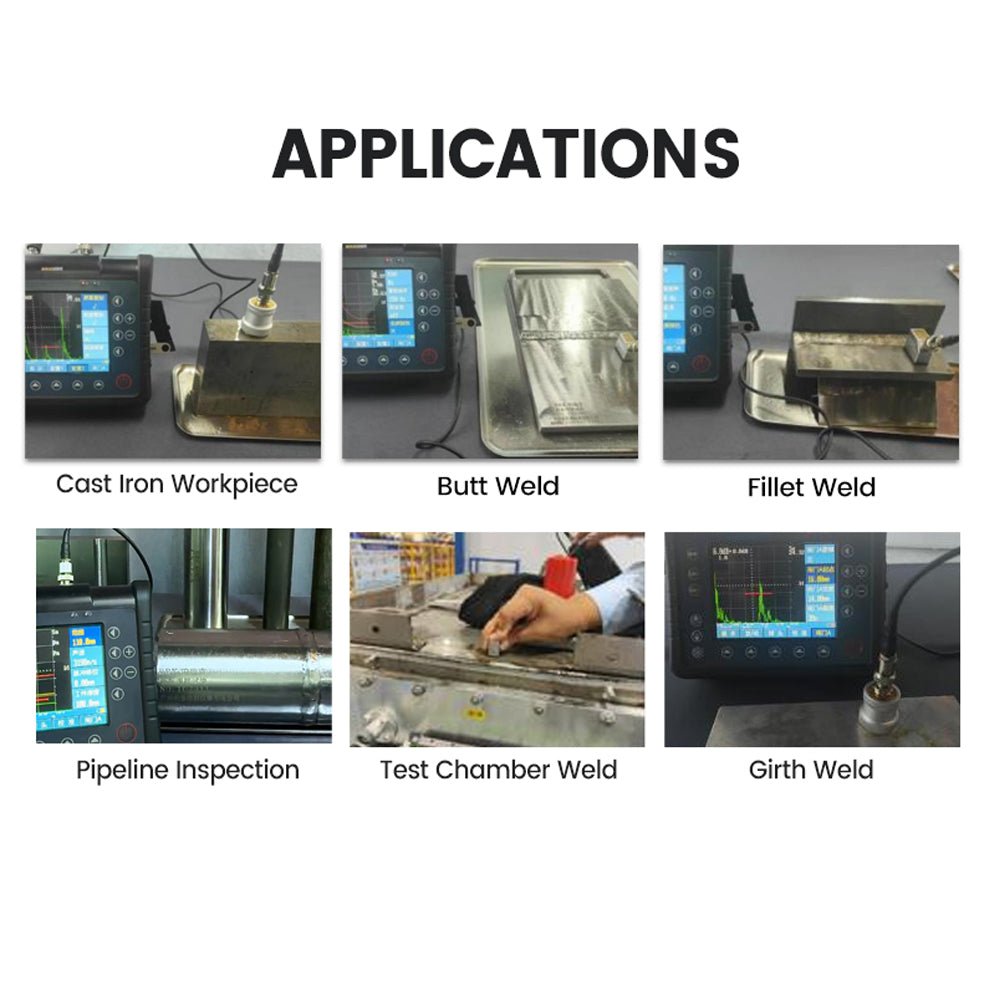

Applications
Materials
Defects Detected
Cracks and fractures
Voids and porosity
Delamination
Thickness variations
Why Choose the Anyscan?
Reliable Performance with 2 Year Mfg. Warranties
Stable operation with strong anti-interference capability for consistent measurements and long service life.
Improved Efficiency
Quick-set functions reduce inspection time and operator workload.

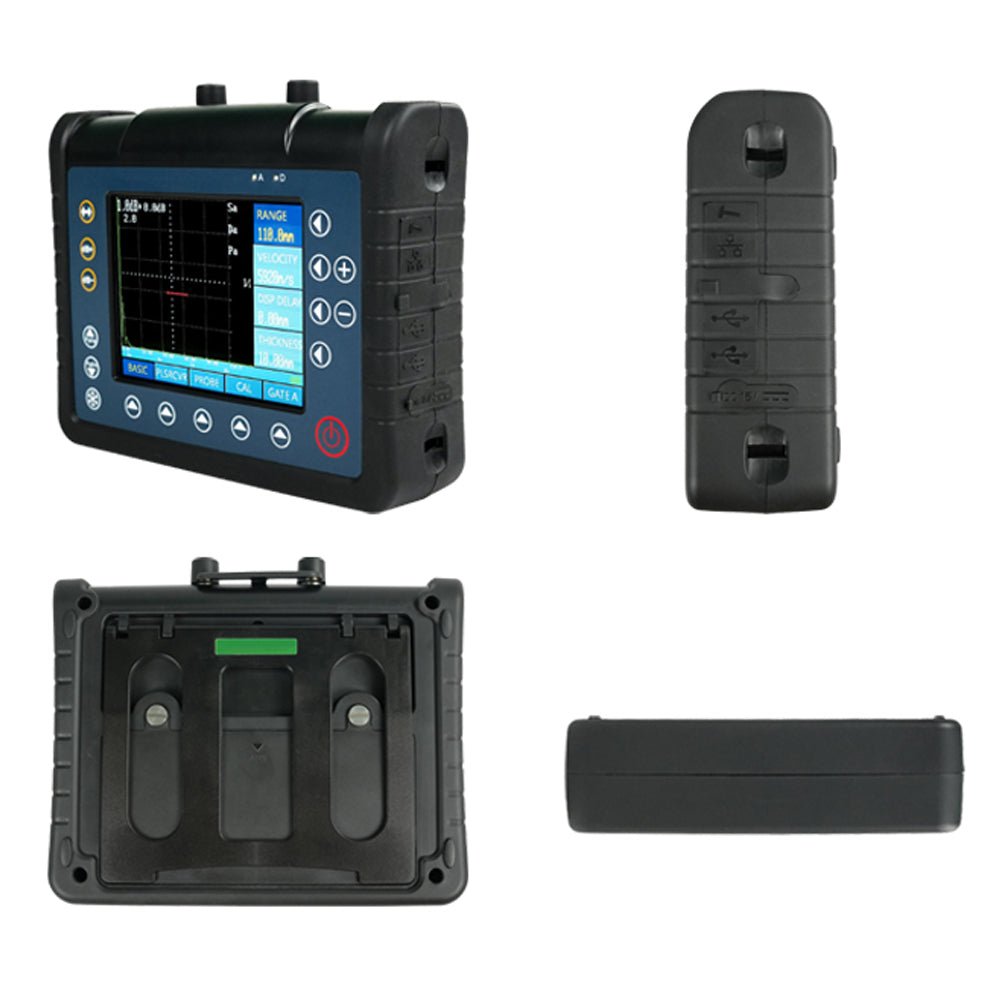

True Portability
Compact, rugged design supports on-site inspections in harsh environments.
Anyscan32 vs Anyscan31
Anyscan32 - A streamlined, cost-effective ultrasonic flaw detector designed for routine inspections and everyday field use.
Anyscan31 - Higher sensitivity, advanced features, and expanded data handling are required.
Key Differences
| Parameter/Model | ANYSCAN32 | ANYSCAN31 |
|---|---|---|
| Range (mm) | 0-10000 | 0-10000 |
| Velocity (m/s) | 1000-15000 | 1000-15000 |
| Sensitivity Reserve (dB) | ≥60 | ≥62 |
| Dynamic Range (dB) | ≥40 | ≥46 |
| Horizontal Linearity Error | ≤0.1% | ≤0.1% |
| Vertical Linearity Error | ≤3% | ≤3% |
| Far Zone Resolution (dB) | ≥28 | ≥30 |
| Frequency Range (MHz) | 0-22 | 0-22 |
| Transmission Pulse | 400V Spike | 400V Spike |
| Continuous Storage | No | Yes |
| RF Detection | No | Yes |
| AWS Standard | No | Yes |
| Weld Diagram | Yes | Yes |
| Peak Memory | Yes | Yes |
| Echo Envelope | Yes | Yes |
| Languages | CN/EN | CN/EN/DE/FR/NO |
| Waterproof Rating | No | IP54 |
| Data Storage | 500 sets | 500 sets + 8GB expansion |
| Probe Delay (µs) | 0.0-199.9 | |
| Gain Adjustment | 0-110dB (0.0/0.1/0.5/1.0/2.0/6.0dB steps) | |
| Damping | High/Low | |
| Operation Mode | Single/Dual probe | |
| Detection Mode | Full wave/Positive half/Negative half/RF | |
| PRF (Hz) | 40/250/1000 (selectable) | |
| Pulse Shift (mm) | -10.0~2000 | |
| Sampling Rate | 400MHz hardware sampling | |
| Measurement Mode | Leading edge or peak | |
| Auto Gain | 20%-85% (5% steps) | |
| Interfaces | USB Type A\B + Ethernet (3 total) | |
| Display | 5.7" high-brightness TFT (640*480) | |
| Power Supply | AC:100-240V DC:15V/3.8A | |
| Operating Time | >6 hours continuous | |
| Operating Temperature | -10 to +50°C | |
| Screen Mirroring | Real-time PC display for teaching | |
| Weight | ~1.4kg (with battery) | |
Machinable probe bottom supports multiple shapes and customizable incident angles for versatile ultrasonic inspection.
Common interfaces: C6, C9 (LEMO-1), Q9 (BNC)
Applications:
Excellent acoustic impedance matching for metallic materials, designed for reliable flaw detection across common inspection tasks.
Common interfaces: C6, C9 (LEMO-1), Q9 (BNC)
Applications:
Improved coupling on rough or curved surfaces with low scattering noise and high near-surface resolution.
Common interfaces: Q6, C5 (LEMO-00), L5 (Microdot)
Applications:
Quarter-wavelength matching layer supports maximum energy output and stable performance in liquid coupling conditions.
Applications:
Effective detection depth of 0.5 mm–9 mm, designed to overcome near-surface blind zones common in other probe types.
Applications:
Reduces coupling effects on uneven weld spots, with crystal options optimized for different spot weld dimensions.
Default interface: Side-mounted Microdot
Applications:
20–50 MHz performance with a solid delay block, designed for high-resolution inspection and minimal focal spot diameter.
Applications:
Supplied with a 0° longitudinal wave delay block, with a customizable probe bottom for high-temperature inspection needs.
Applications:
Generates shear waves via vertical incidence for confined or hard-to-access inspection areas.
Applications:
