Pyromation
S4C0408
Thermowells
A thermowell is a pressure-tight receptacle that protects and extends the life of a temperature sensor in processing applications where the sensor is not mechanically or chemically compatible with the process environment.
Installed directly into piping systems, thermowells facilitate sensor replacement in high pressure pipelines and eliminate the need to interrupt the process flow or drain the process system for sensor maintenance functions. The use of standardized thermowells permits simple relocation of sensors throughout a plant.

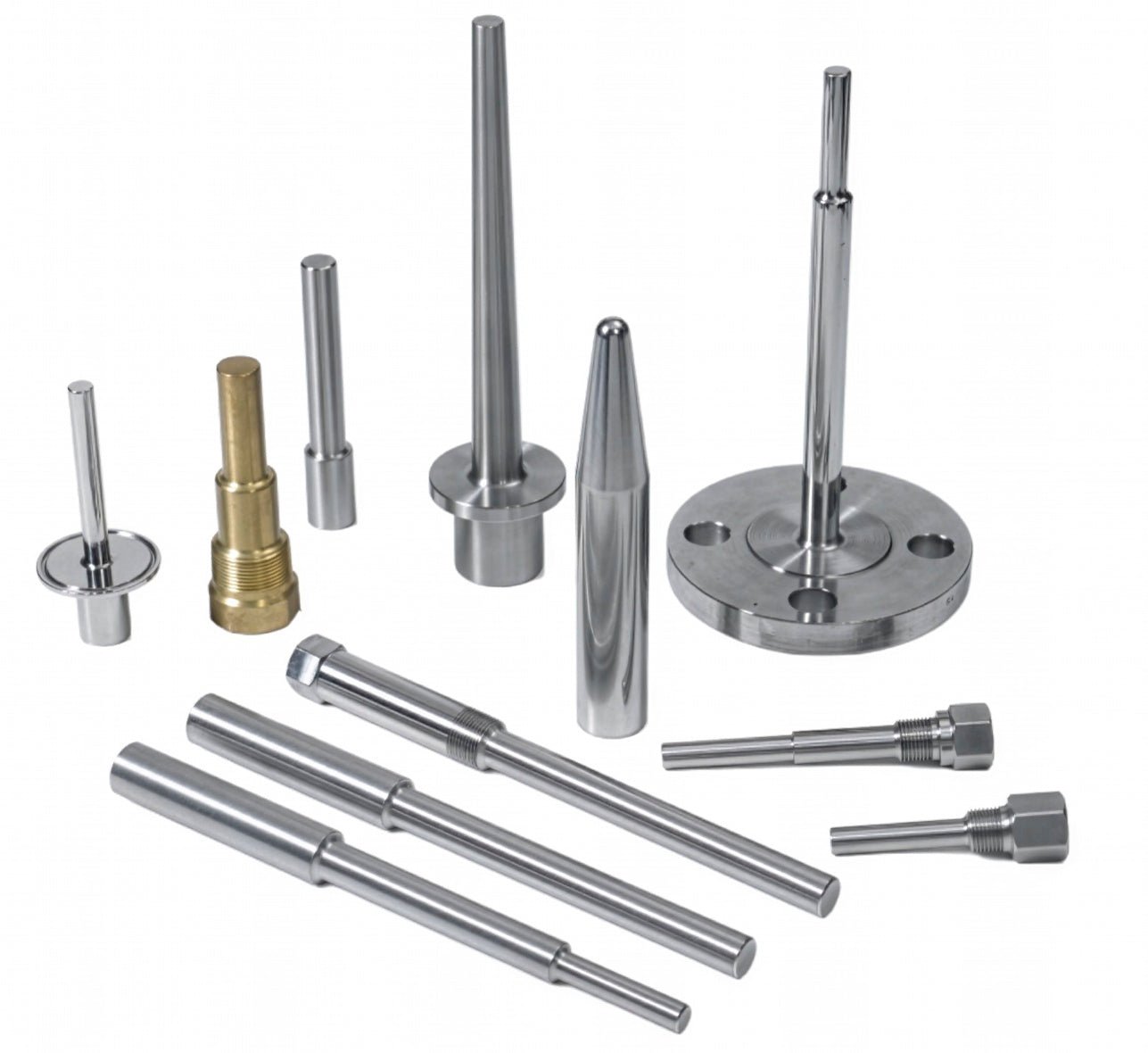

Pyromation produces thermowells that have a proven track record in a wide range of industries and applications. Our product line includes threaded, Van Stone, socket-weld, weld-in and flanged thermowells. Thermowells are available as separate components or as a part of complete temperature sensor assemblies.
If you have a specific requirement or need a thermocouple you don't see listed just send us a note and we'll get you a quote.
|
Part Number |
Description |
|

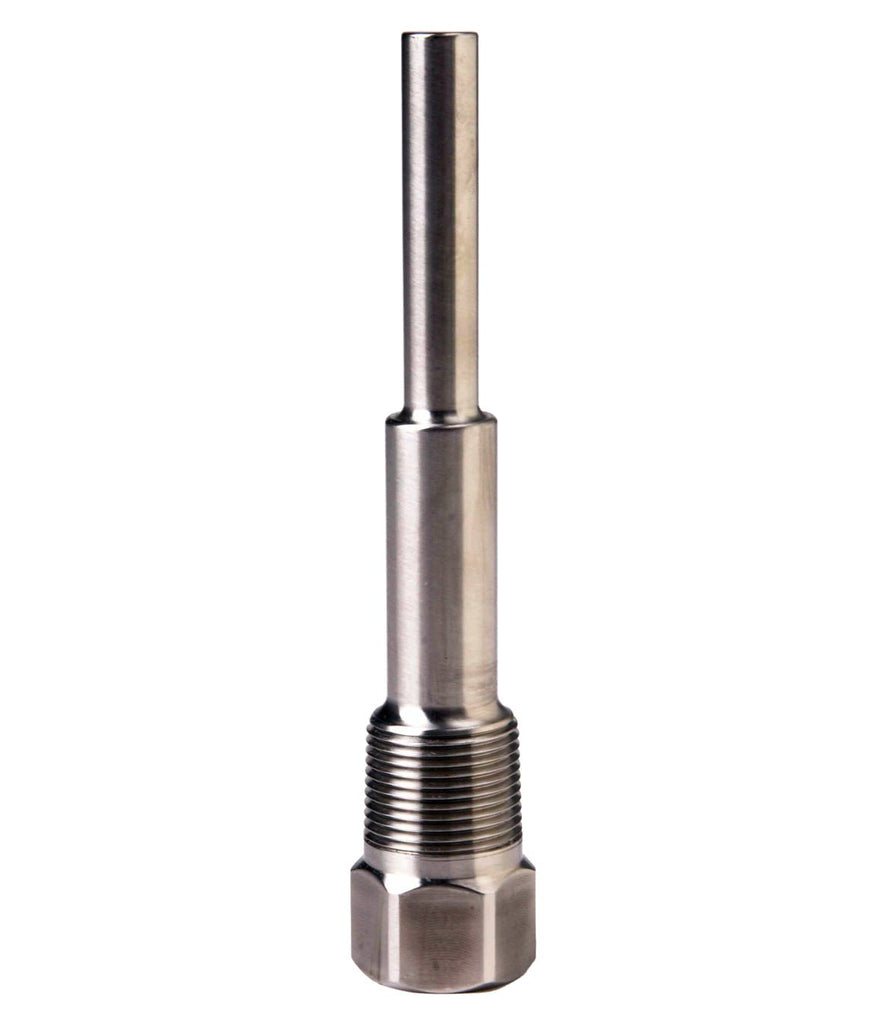

S4C0408 |
Thermowell, Standard Duty, 0.260" Bore, 1/2"NPT Process Connection, 4" Long, 2.5" Insertion, 316SS |
|
S4C0608 |
Thermowell, Standard Duty, 0.260" Bore, 1/2"NPT Process Connection, 6" Long, 4.5" Insertion, 316SS |
|
S4C0908 |
Thermowell, Standard Duty, 0.260" Bore, 1/2"NPT Process Connection, 9" Long, 7.5" Insertion, 316SS |
|
S4C1208 |
Thermowell, Standard Duty, 0.260" Bore, 1/2"NPT Process Connection, 12" Long, 10.5" Insertion, 316SS |
|
S4D0408 |
Thermowell, Standard Duty, 0.260" Bore, 3/4"NPT Process Connection, 4" Long, 2.5" Insertion, 316SS |
|
S4D0608 |
Thermowell, Standard Duty, 0.260" Bore, 3/4"NPT Process Connection, 6" Long, 4.5" Insertion, 316SS |
|
S4D0908 |
Thermowell, Standard Duty, 0.260" Bore, 3/4"NPT Process Connection, 9" Long, 7.5" Insertion, 316SS |
|
S4D1208 |
Thermowell, Standard Duty, 0.260" Bore, 3/4"NPT Process Connection, 12" Long, 10.5" Insertion, 316SS |
